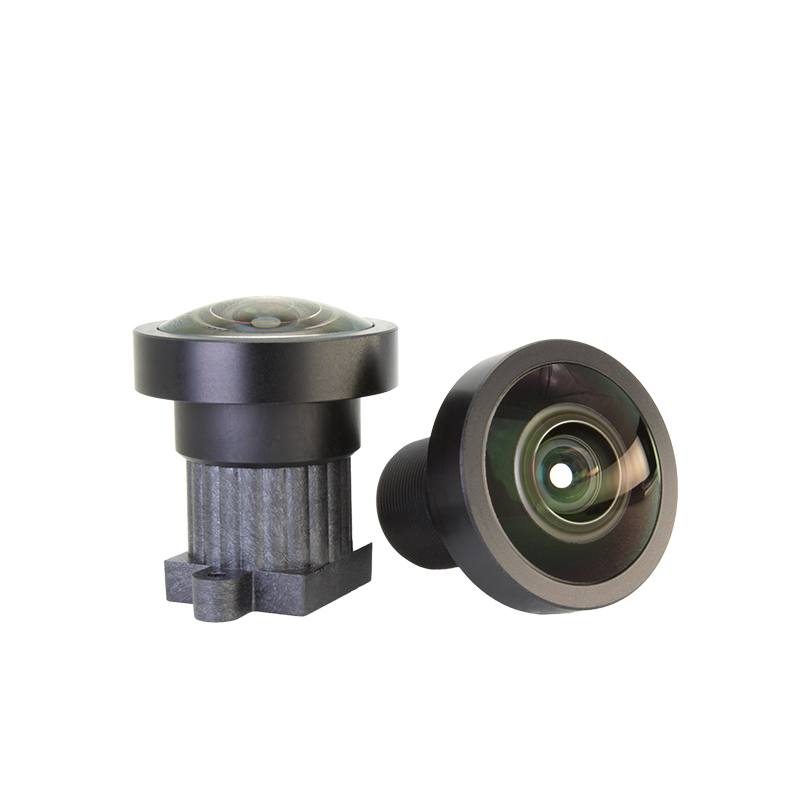

JSD2916-J1 8M M12 Fisheye Lens f=2.96mm F/1.60 IP67

Lens Specifications

EFL(mm)	f=2.96±5% mm
F/NO (max)	F/NO=1.60±5%
HFOV	150.2° y=3.8400mm
Distortion	<-4.09%
Element	5G3P+IR650
Thread	M12.00*P0.50
TTL (mm)	27.50±0.3 mm
Image Sensor	1/1.8" IMX678; 1/2" IMX385

: 16MP 4K/8K Ultra HD Lens JSD3008 F1.8 162° DFOV 1/1.8" M12 Mount Lens for IMX342 Industrial
EFL focal length (mm):3.09
F/NO :1.8
Field of view:162°
Distortion:<-18.8%
Mount :M12*P0.5
TTL:16.00
Diameter:Φ9.1
Image size:1/1.8"
Resolution: 16MP

: 8MP 4K HD Lens JSD5426 5.4mm EFL 1/1.8" Inch M12 Mount Low Distortion Lens for OmniVision OS08A10
EFL focal length (mm):5.4
F/NO :2.6
Field of view:71°
Distortion:<-1.17%
Mount :M12*P0.5
TTL:23.55
Diameter:Φ9.0
Image size:1/1.8"

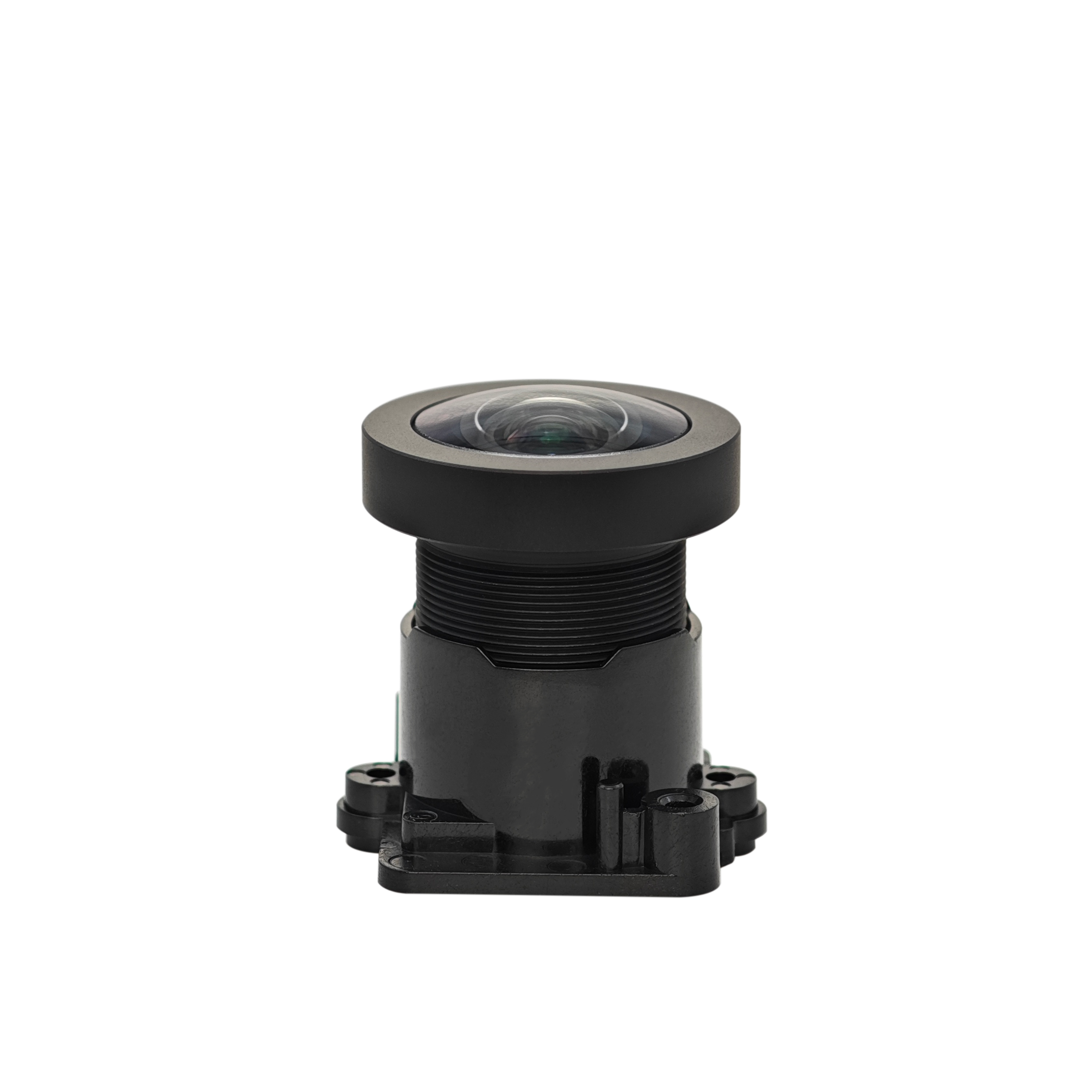

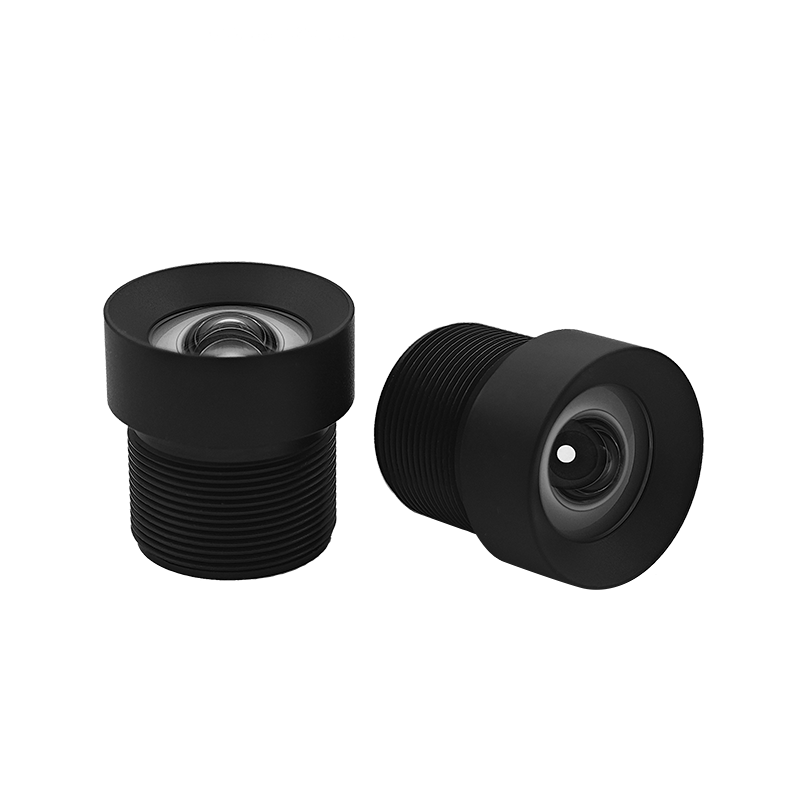

: 20MP 1/1.8" Ultra HD Lens JSD3840 3.76mm Zero Distortion <0.4% M12 Mount Lens for Onsemi AR2020
EFL focal length (mm):3.76
F/NO :4.0
Field of view:(D)100 / (H)86.5 / (V)70.4
Distortion:<-0.4%
Mount :M12*P0.5
TTL:15.8
Diameter:Φ14
Image size:1/1.8" AR2020

: 8MP 4K Lens JSD2917 F1.6 Large Aperture 196° DFOV 1/1.8" M12 Mount 5G3P Lens for SmartSens SC2210
PN: JSD2917
EFL: 2.67mm
F/NO: 1.6
FOV: D196° H166° V91°
distortion: <-3.76%
Element: 5G3P
Thread: M12
TTL: 28.9mm
Res: 8MP

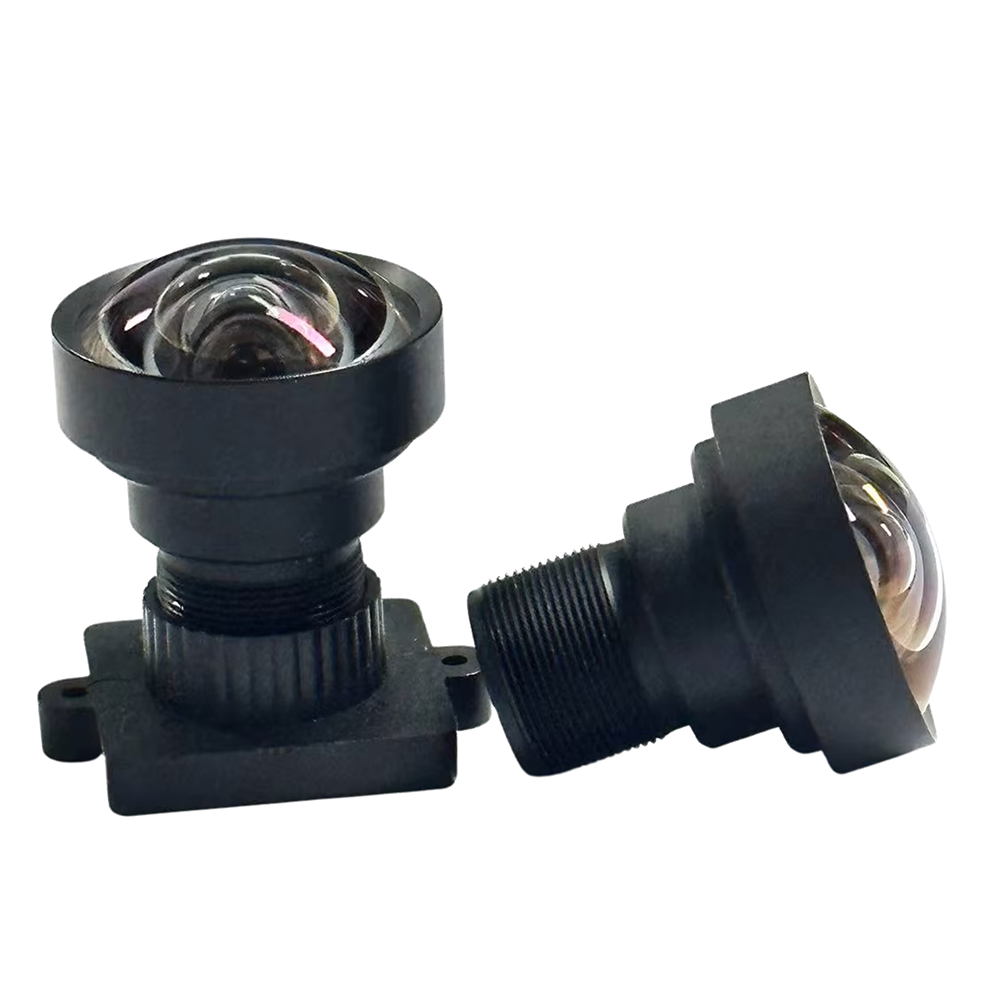

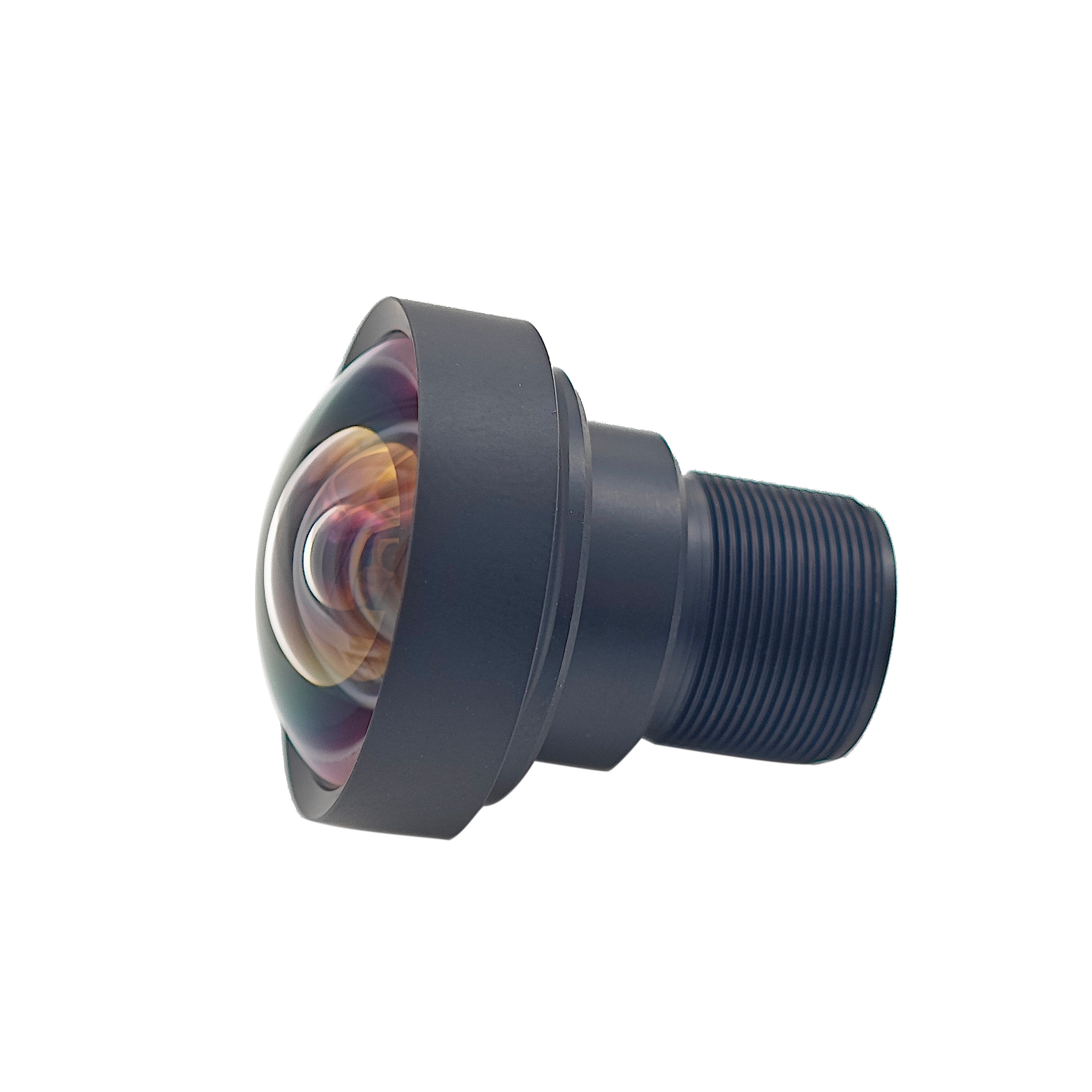

: JSD3020 8MP 4K UHD Industrial Lens for 1/1.8" SONY IMX334 Sensor
PN: JSD3020
EFL: 3.05mm
F/NO: 2.0
FOV: D119° H110° V72°
distortion: <-5.85%
Element: 4G4P
Thread: M12
TTL: 29.56mm
Res: 8MP

: JSD4218 8MP 4K UHD Industrial Lens for 1/1.7" SONY IMX226 Sensor
PN: JSD4218
F4.2
HFOV 88° 85°
TTL 30mm
Thread M12
Distortion <-0.65% <-1%
Image Sensor 1/1.7" 1/1.8"

: JSD8028 8MP 4K UHD Industrial Lens for 1/1.8" SONY IMX334 Sensor
PN: JSD8028
EFL: 8mm
HFOV 51 deg on IMX334 Sensor
Max image circle 9.1mm
Low distortion 0.2%

: JSD2916 8MP 4K UHD Fisheye Lens for 1/1.8" SONY IMX678 Sensor
PN: JSD2916
F/1.6 good low light performance
HFOV 151°
Low distortion 0.6%
IP67 rating
Support for 1/1.8" 4K Sensor

: JSD4118 8MP 4K UHD Industrial Lens for 1/1.8" SONY IMX178 Sensor
PN: JSD4118
Aperture: F1.8
HFOV 111° on IMX678 sensor
Low distortion 15%
Max image circle 9.1mm
Support up to 1/1.7" AR0821 sensor

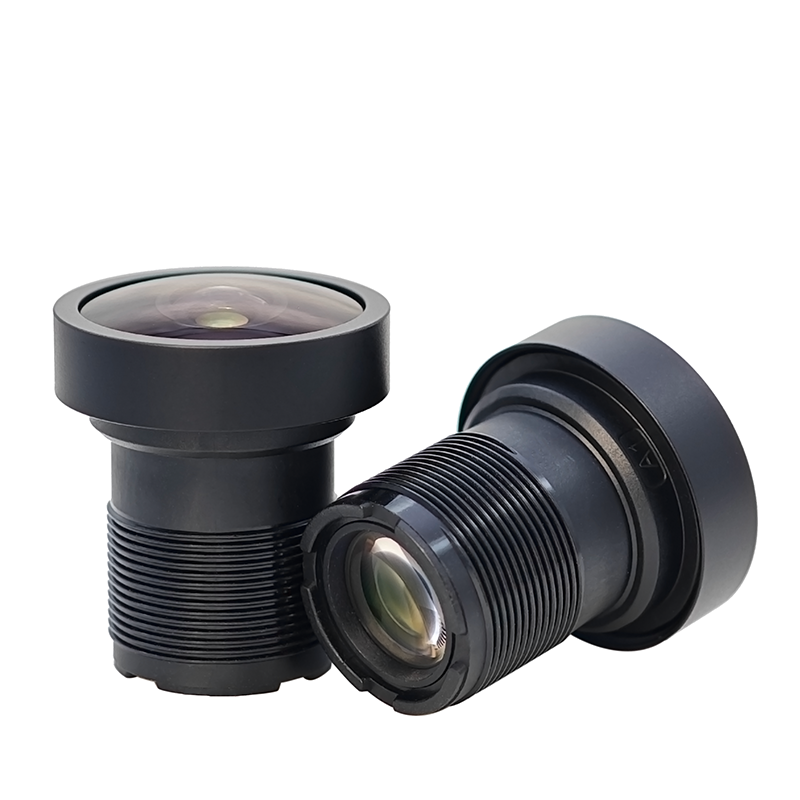

: JSD1537 8MP 4K UHD Industrial Lens for 1/1.8" SONY IMX678 Sensor
PN: JSD1537
F1.5
HFOV 123.9°
TTL 24.4mm
Thread M12
Distortion <-20%
Image Sensor 1/1.8"

: JSD5816 8MP 4K UHD Industrial Lens for 1/1.8" SONY IMX178 Sensor
PN: JSD5816
Aperture: F1.6
HFOV 70° on OS08A20 sensor
Low distortion 2.5%
Max image circle 9.4mm
Support up to IMX586 and AR0821
Image Sensor 1/2" 1/1.8"

Total16Records«Prev12 Next»
