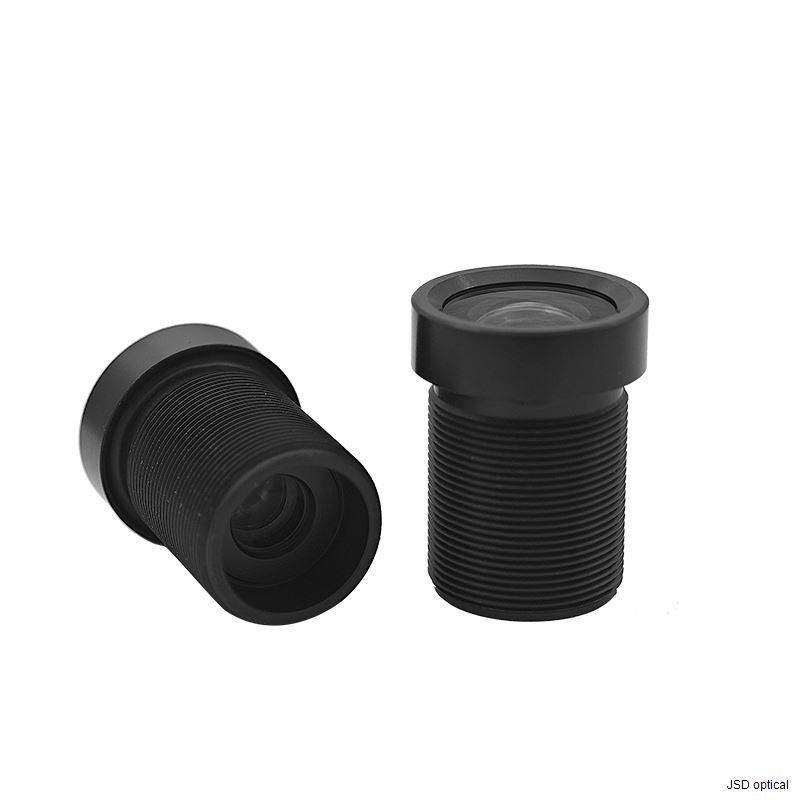

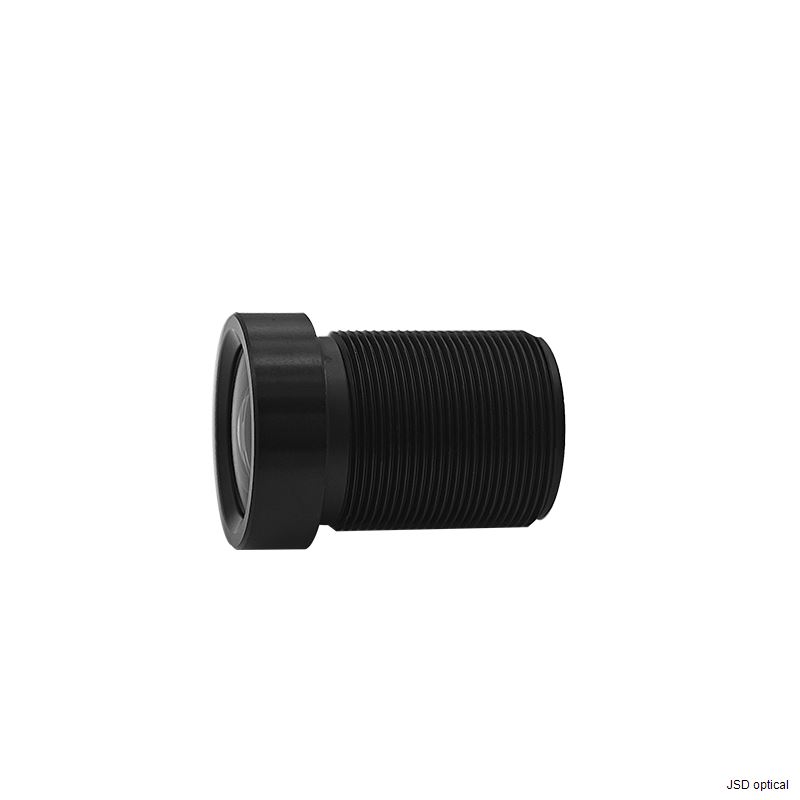

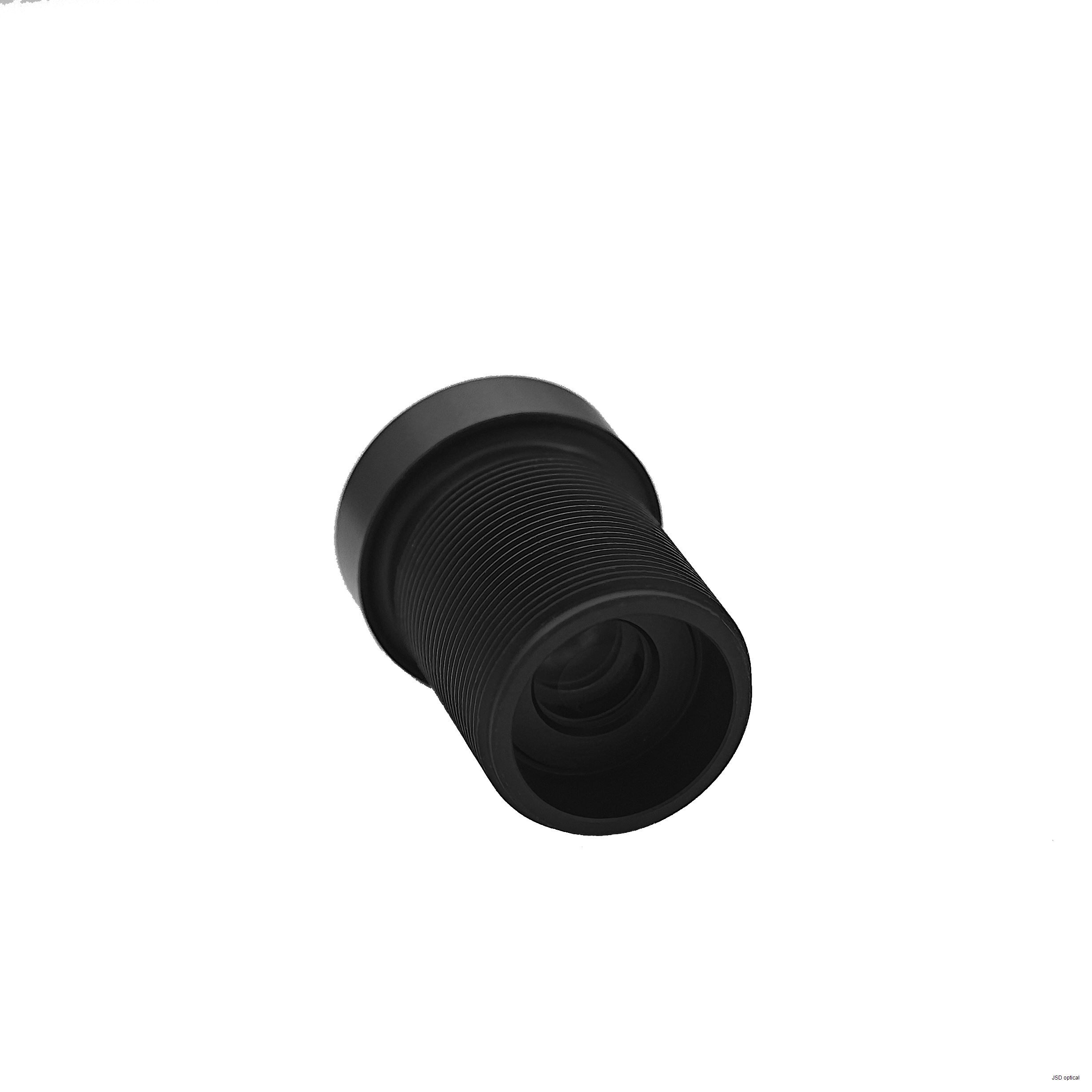

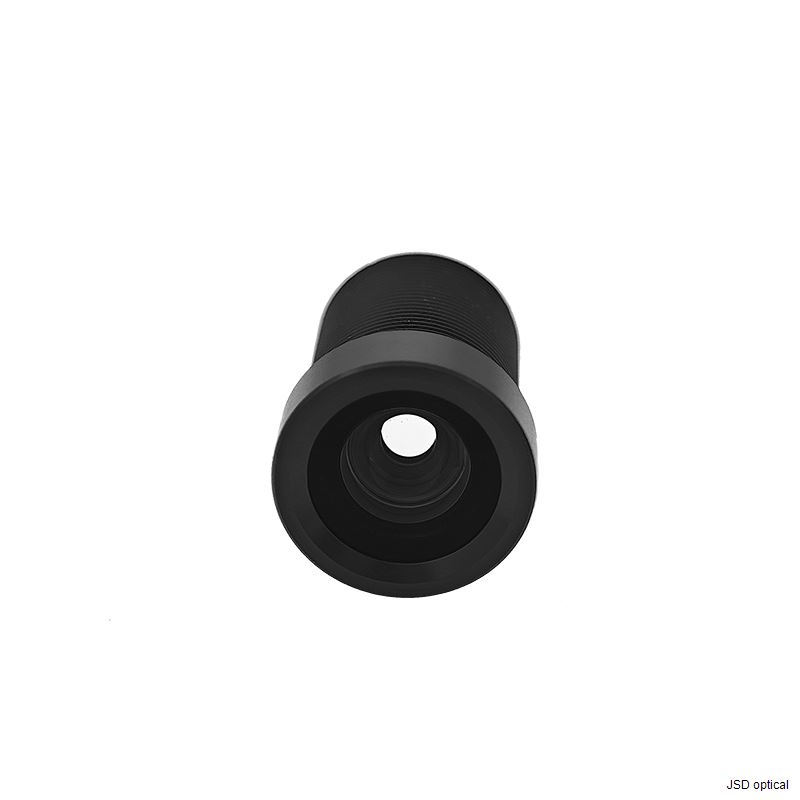

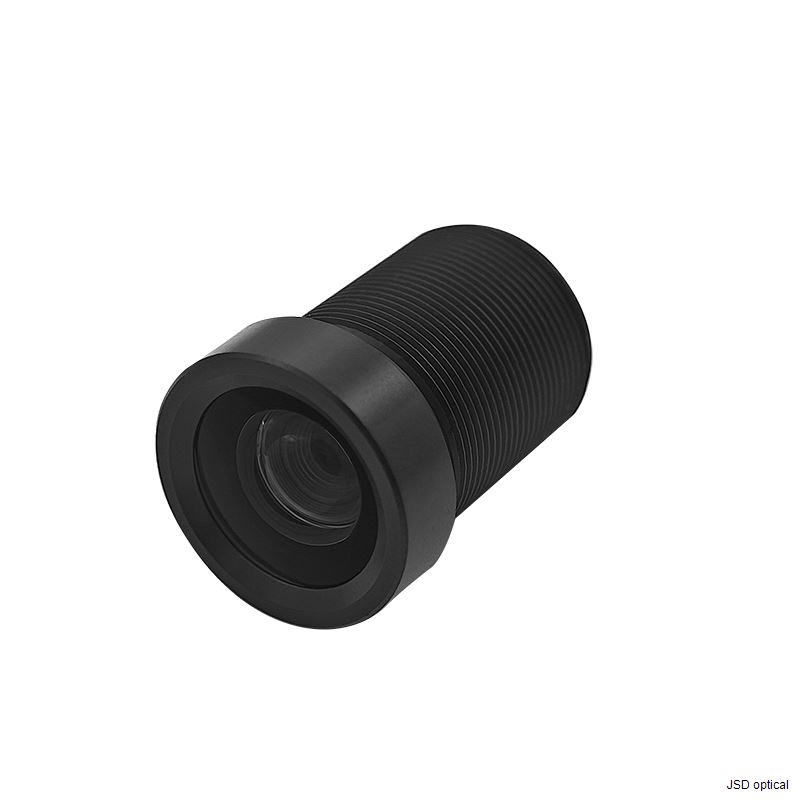

PN: JSD8028
EFL: 8mm
HFOV 51 deg on IMX334 Sensor
Max image circle 9.1mm
Low distortion 0.2%
TV distortion below -0.46% keeps straight lines accurate across the frame, reducing software correction for recognition and measurement tasks.
Meets IP67 ingress protection, shielding optics against dust and temporary water immersion for outdoor security and industrial deployment.
8MP-class optics with a 1/1.8″ image circle pair with Sony IMX334; 2G4P glass design limits temperature-driven focus drift.

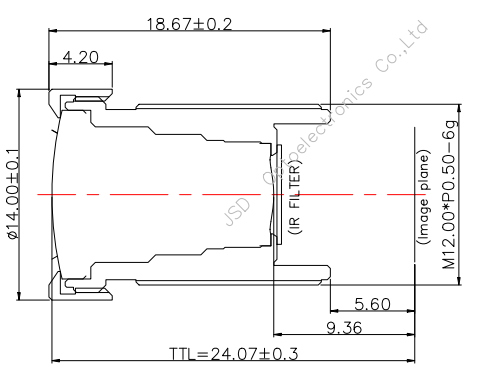

| Model | EFL (mm) | F/# | FOV D/H/V | TV Distortion | Construction | Mount | Diameter | TTL (mm) | Max. Resolution | Image Circle | IP67 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| JSD8028 | 8.00 | 2.8 | 58° / 51° / 30° | < -0.46% | 2G4P | M12 | φ14 mm | 24.07 | 8 MP | 1/1.8″ (Ø9.0 mm) | Yes |
The lens is designed for 1/1.8″-format sensors with a Ø9.0mm image circle, including the Sony IMX334. It is an 8MP-class optical design, and its M12 mount thread fits standard board-level camera holders. For other sensor formats, JSD Optics recommends confirming the sensor's active area and chief ray angle with the engineering team before qualification.
The 8.00mm focal length produces a 58° diagonal, 51° horizontal, and 30° vertical field of view. This narrow-to-medium angle perspective is generally suited to observing subjects at a distance — such as gates, lanes, perimeter lines, or approaching objects — rather than wide-area coverage. Actual framing depends on the sensor active area and installation height.
Yes. It meets IP67 ingress protection requirements, meaning it is protected against dust and temporary immersion in water. This supports use in rain, dust, road-side, and washdown environments. Note that an IP rating addresses ingress to the lens; the overall protection of the finished camera also depends on the housing and cabling of the module.
Yes. Camera module manufacturers and embedded vision developers can request evaluation units. JSD Optics recommends providing the target sensor model and application details so optical compatibility can be confirmed before shipment.
As an imaging lens developer and manufacturer, JSD Optics supports both standard supply and custom development. Around this platform, aspects such as mechanical dimensions, coating options, and optical tuning can be reviewed with the engineering team against a specific sensor and module design.
We don't just sell lenses. We run a full optical verification cycle — on your sensor, under your constraints — before we recommend anything.
Sensor model (Sony / Onsemi / Omnivision)
Application type (machine vision / security / UAV)
Resolution & FOV (e.g. 8MP, 58°)
Working distance & FBL constraints
Mechanical envelope (length, diameter)
Existing lens fits your sensor perfectly. Sample shipment in 3–5 days. No NRE.
Based on an existing platform. Modify barrel, coating, or specific elements — faster than ground‑up design.
New optical design tailored to your sensor. NRE & timeline evaluated and quoted.
The JSD8028 is an 8MP, 1/1.8″ M12 (S-Mount) imaging lens developed for camera module manufacturers and embedded vision developers building cameras for outdoor and distance-monitoring applications. With an 8.00mm effective focal length and a 58° diagonal field of view, it delivers a relatively narrow, long-working-distance perspective — well suited to perimeter security cameras, smart traffic systems, and UAV or robotics platforms where the subject to be resolved is at a distance rather than spread across a wide scene.
A common set of challenges in these deployments includes edge distortion that complicates recognition or measurement, temperature-related focus shift in all-plastic optical designs, and package sizes that are difficult to fit into compact module boards. The JSD8028 addresses these concerns through a 2G4P hybrid configuration: two glass elements contribute thermal stability and aberration control, while four precision-molded plastic elements help manage weight and cost. TV distortion is held below -0.46%, and the F2.8 aperture balances light intake with depth of field across changing outdoor lighting.
For field reliability, the lens is sealed to IP67 ingress protection requirements, so the optical path is protected from the dust and temporary water exposure common in road-side, rain, washdown, and similar environments. The compact φ14mm barrel with a 24.07mm total track length allows integration into space-limited camera module designs, and M12 threading provides compatibility with standard holders and board-level camera platforms. The lens is matched to 1/1.8″-format sensors such as the Sony IMX334, enabling module makers to qualify optics and sensor together with more predictable results during the design phase.
