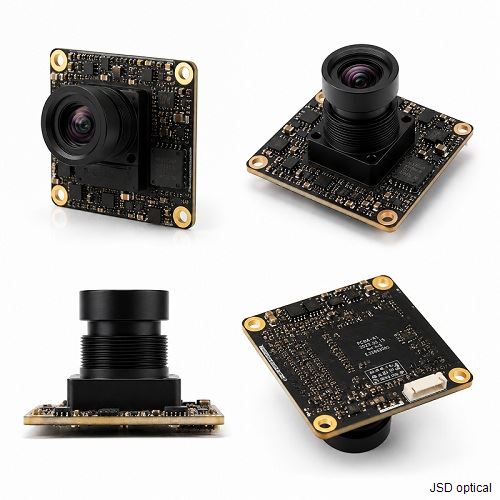

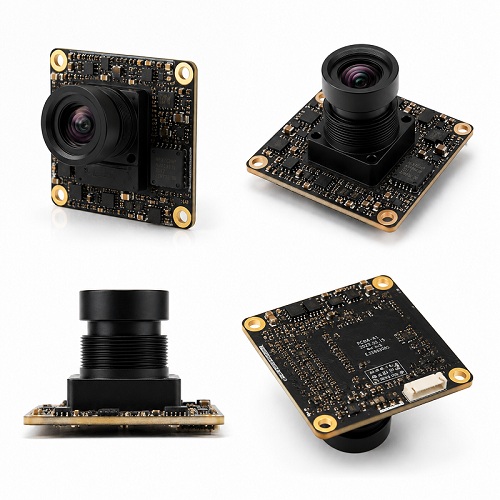

JSD Optics supplies M12 / S-mount imaging lenses to camera module manufacturers. Our M12 lenses are widely used in camera modules for Raspberry Pi and other embedded vision platforms — including HQ Camera (IMX477) and V3 (IMX708) compatible designs.
Lens selection depends on your sensor size, resolution, FOV, and distortion requirements. Compare the options below or send us your sensor model for a recommendation.
Click your scenario and we'll recommend the best M12 lens solution

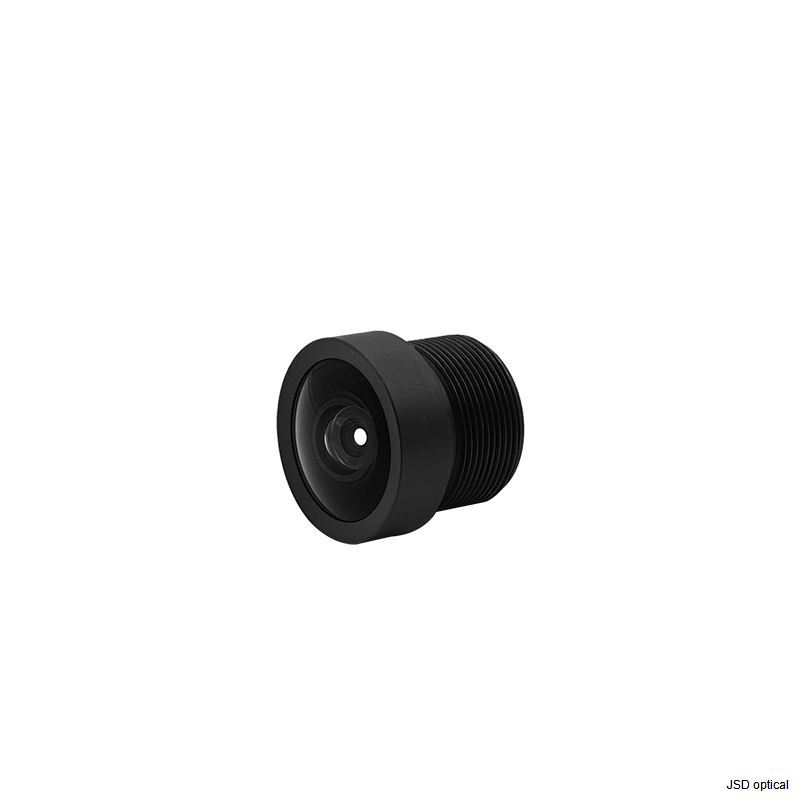

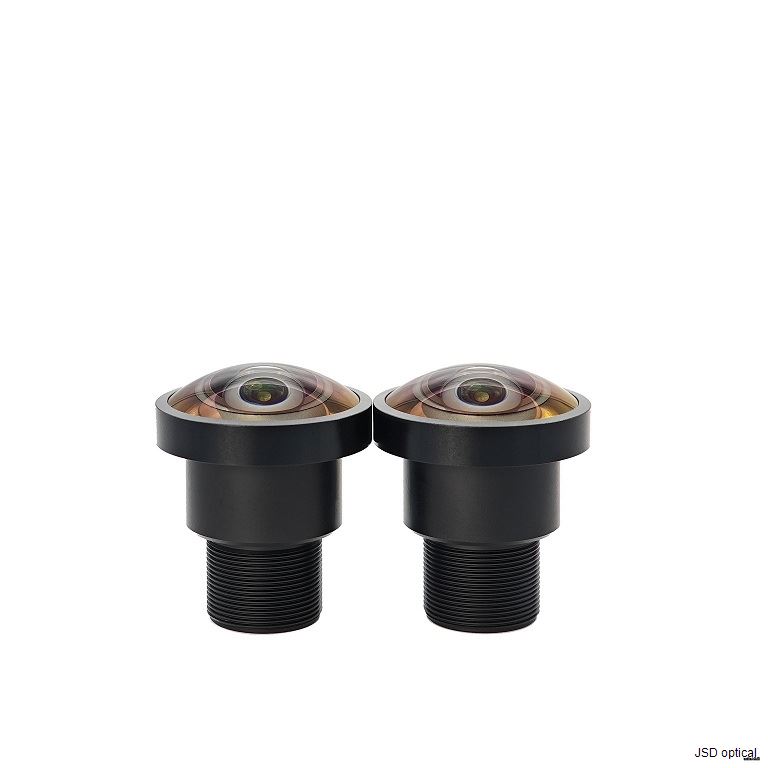

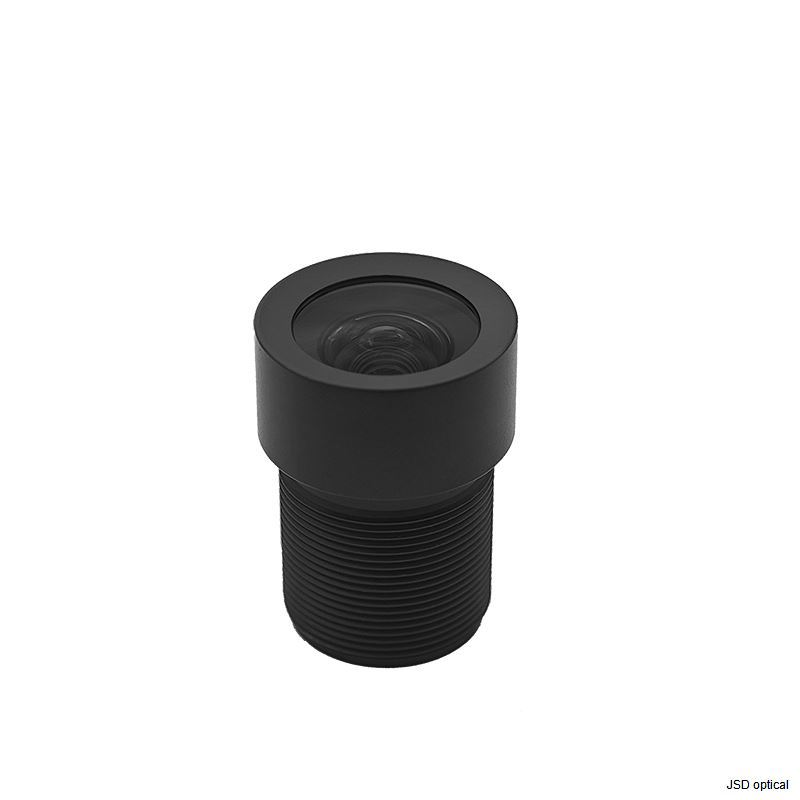

All models feature M12 (S-Mount) thread. Compatible with Raspberry Pi HQ Camera (IMX477) and other M12-based camera modules. Optimized for embedded vision, robotics, and AI edge devices.
| Model | EFL (mm) | F# | Distortion | Max Res. | Sensor Size | Action |
|---|---|---|---|---|---|---|
| JSD2917 | 2.67 | F1.6 | -3.76% | 8MP | 1/1.8″ | View Details |
| JSD5816 | 5.83 | F1.6 | -2.5% | 12MP | 1/1.8″ | View Details |
| JSD1328 | 3.90 | F2.8 | <0.5% | 8MP | 1/2.3″ / 1/2.8″ | View Details |
| JSD3528 | 3.14 | F2.4 | <3.9% | 8MP | 1/2.5″ / 1/2.8″ | View Details |
| JSD5426 | 5.40 | F2.6 | <0.53% | 8MP | 1/1.8″ | View Details |
| JSD2520 | 2.50 | F2.0 | -16.64% | 8MP | 1/2.5″ | View Details |
| JSD2631 | 2.70 | F2.8 | <-1.5% | 8MP | 1/2.3″ / 1/2.8″ | View Details |
* All lenses are M12 (S-Mount). Includes IMX477-compatible options for Raspberry Pi HQ Camera. Click "View Details" for full specs, mechanical drawings, and samples.
Tell us your sensor model (e.g., Sony IMX477 for RPi, IMX708, OV5640) or project requirements. We'll recommend the best match and provide drawings & samples.
Get Official Quote & Technical DrawingsFree engineering support · 24-hour response · Custom optical design & volume manufacturing available
We don't just sell lenses. We run a full optical verification cycle — on your sensor, under your constraints — before we recommend anything. Whether you're building a Raspberry Pi camera or an industrial vision system.
Sensor model (Sony / Onsemi / Omnivision / RPi IMX477)
Application type (machine vision / security / UAV / robotics)
Resolution & FOV (e.g. 8MP, 120°)
Working distance & FBL constraints
Mechanical envelope (length, diameter, IP rating)
Existing lens fits your sensor perfectly. Sample shipment in 3–5 days. No NRE.
Based on an existing platform. Modify barrel, coating, or specific elements — faster than ground‑up design.
New optical design tailored to your sensor. NRE & timeline evaluated and quoted.
Design, development, and manufacturing of imaging lenses for camera module manufacturers.
Our factory floor with dedicated production lines and precision optics assembly.
✅ Dedicated M12 / S‑Mount imaging lens production lines
✅ High‑precision optical assembly & in‑line inspection
✅ Supports resolutions from 5MP to 50MP
✅ Sensor size compatibility: 1/3″ ~ 1/1.3″
Optical testing lab with MTF, distortion, and environmental screening — IATF 16949 certified.
✅ ISO 9001 & IATF 16949 quality management systems
✅ 100% in‑process and outgoing optical inspection
✅ MTF, distortion, chromatic aberration testing
✅ Environmental stress screening (temp/humidity)
✅ PPAP documentation & full traceability
From sensor to lens — designed for your image sensor.
Customers provide sensor, resolution, FOV, working distance — we deliver custom optical design, prototype, validation, and mass production.
✅ Full optical design from scratch or modification
✅ Sensor‑centric matching: Sony, Onsemi, Omnivision
✅ Low distortion, wide‑angle, compact, IP67 variants
✅ 50+ custom solutions delivered
Looking for a lens with slightly different specs? Not all of our products are listed online. Please contact us if you can't find an exact match.
We offer several customizations for our lenses. Contact us to discuss feasibility, minimum order quantities, and NRE requirements.
Custom filters (Bandpass, Dual Notch, etc.)
Customized higher F#
Barrel mechanical design adjustments (e.g. active alignment, ingress protection)
Hydrophobic coating on front optical surface
Preassembly with M12 lens holders to reduce anodization debris and tilt
Optical data (MTF, EFL, etc.) with serialized unit-level traceability
Pre-mounting service for Raspberry Pi HQ Camera sensor alignment
