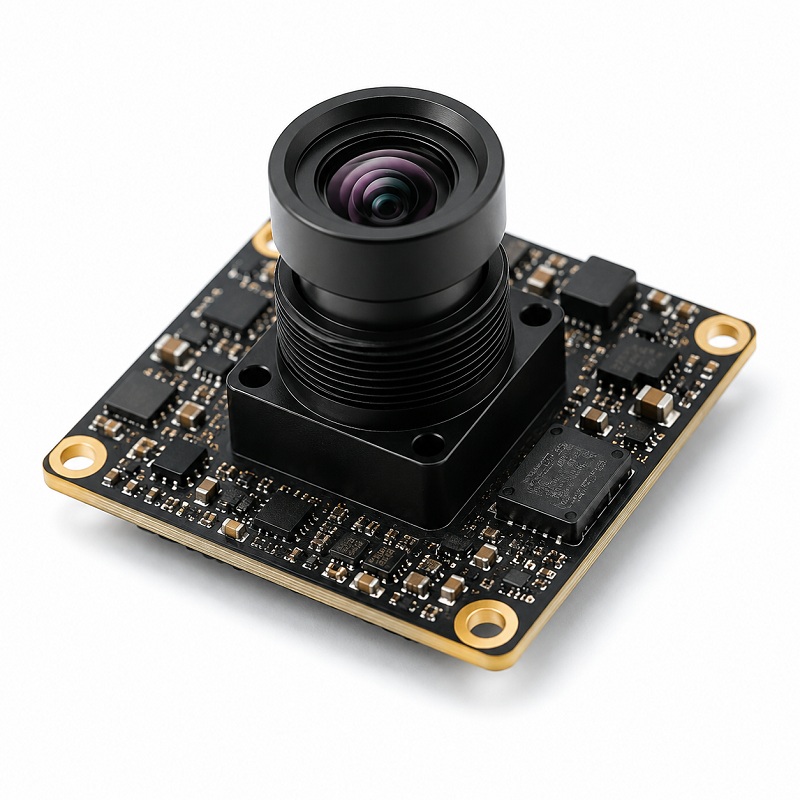

M12 / S-mount lenses are balanced-performance optics for embedded vision systems. These lenses have threads which are 12mm in diameter.
We help you find or custom-design the right lens for your sensor and application — with in-house optical design, precision manufacturing, and full verification (MTF / CRA / distortion). Choose your scenario below, or send us your sensor model for a direct recommendation.
Click your scenario and we'll recommend the best M12 lens solution
All models feature M12 (S-Mount) thread and are optimized for machine vision, surveillance, and AI edge devices.
| Model | EFL / F# | FOV (D/H/V) | Distortion | Max Res. | Image Circle | Mount | TTL / Elem. | IP | Action |
|---|---|---|---|---|---|---|---|---|---|
| JSD3008 | 2.95mm / F1.8 | 163/139/80 | -23% | 16MP | 1/1.8″ (Ø9.0) | M12 | TTL 16.0 mm · φ14 · 2G6P | — | View Details |

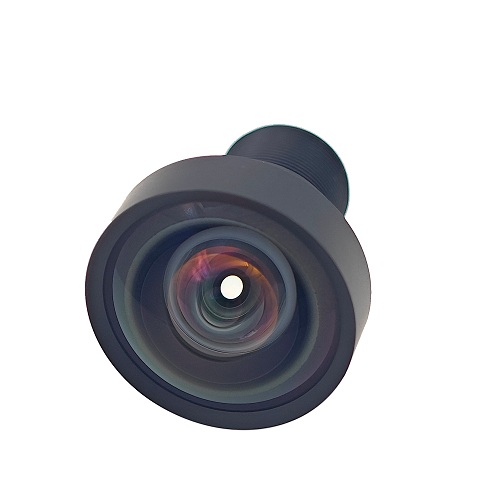

| JSD3020 | 3.05mm / F2.0 | 121/113/75 (1/1.7″) 119/110/71.8 (1/1.8″) | -6.2% | 12MP | 1/1.7″ (Ø9.65) / 1/1.8″ | M12 | TTL 29.56 mm · φ22 · 4G4P | — | View Details |

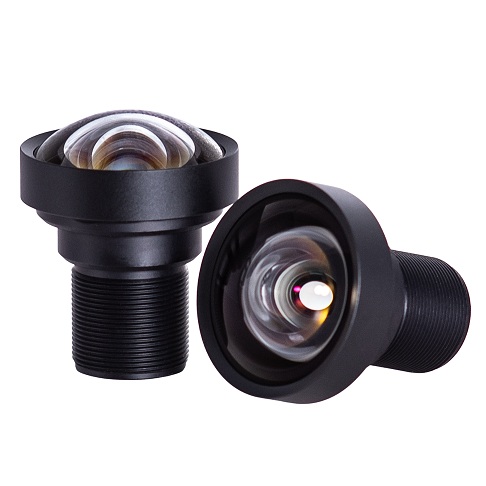

| JSD4218 | 4.20mm / F1.8 | 96/88/57 (1/1.7″) 93/85/54 (1/1.8″) | 0.65% | 12MP | 1/1.7″ (Ø9.8) / 1/1.8″ | M12 | TTL 30.0 mm · φ22 · 8E | — | View Details |

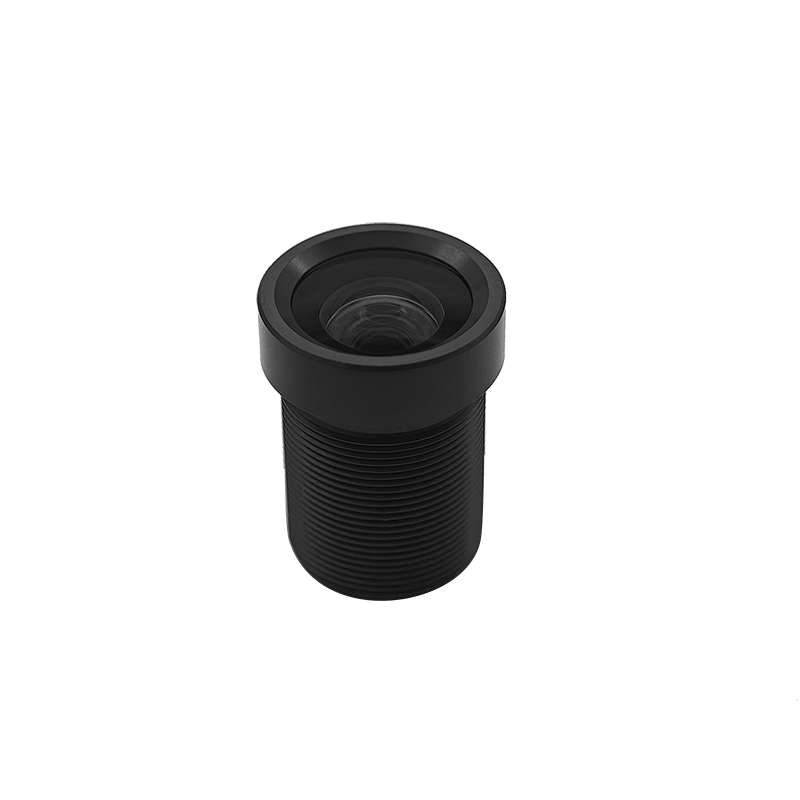

| JSD8028 | 8.00mm / F2.8 | 58/51/30 | -0.46% | 8MP | 1/1.8″ (Ø9.0) | M12 | TTL 24.07 mm · φ14 · 2G4P | IP67 | View Details |
| JSD9060 | 10.0mm / F3.0 | 47/41/24 (1/1.8″) 35/28/21 (1/2.8″) | <0.4% | 5MP | 1/1.8″ / 1/2.8″ | M12 | TTL 13.22 mm · φ14 · 2G2P | — | View Details |
| JSD1330 | 13.0mm / F3.0 | 26/23/13 | -0.07% | 5MP | 1/2.7″ (Ø8.2) | M12 | TTL 21.87 mm · φ14 · 1G3P | — | View Details |
| JSD1660 | 16.1mm / F3.0 | 21/17/13 | -0.73% | 5MP | 1/2.8″ (Ø6.8) | M12 | TTL 18.15 mm · φ11 · 1G2P | — | View Details |
* All lenses are M12 (S-Mount). Click "View Details" for full specs, mechanical drawings, and quotation requests.
Tell us your sensor model (e.g., Sony IMX334, OV5640) or project requirements. We'll recommend the best match and provide drawings & samples.
Get Official Quote & Technical DrawingsFree engineering support 24-hour response OEM/ODM available
We don't just sell lenses. We run a full optical verification cycle — on your sensor, under your constraints — before we recommend anything.
Sensor model (Sony / Onsemi / Omnivision)
Application type (machine vision / security / UAV)
Resolution & FOV (e.g. 8MP, 120°)
Working distance & FBL constraints
Mechanical envelope (length, diameter)
Existing lens fits your sensor perfectly. Sample shipment in 3–5 days. No NRE.
Based on an existing platform. Modify barrel, coating, or specific elements — faster than ground‑up design.
New optical design tailored to your sensor. NRE & timeline evaluated and quoted.
Design, development, and manufacturing of imaging lenses for camera module manufacturers.
Our factory floor with dedicated production lines and precision optics assembly.
✅ Dedicated M12 / S‑Mount imaging lens production lines
✅ High‑precision optical assembly & in‑line inspection
✅ Supports resolutions from 5MP to 50MP
✅ Sensor size compatibility: 1/3″ ~ 1/1.3″
Optical testing lab with MTF, distortion, and environmental screening — IATF 16949 certified.
✅ ISO 9001 & IATF 16949 quality management systems
✅ 100% in‑process and outgoing optical inspection
✅ MTF, distortion, chromatic aberration testing
✅ Environmental stress screening (temp/humidity)
✅ PPAP documentation & full traceability
From sensor to lens — designed for your image sensor.
Customers provide sensor, resolution, FOV, working distance — we deliver custom optical design, prototype, validation, and mass production.
✅ Full optical design from scratch or modification
✅ Sensor‑centric matching: Sony, Onsemi, Omnivision
✅ Low distortion, wide‑angle, compact, IP67 variants
✅ 50+ custom solutions delivered

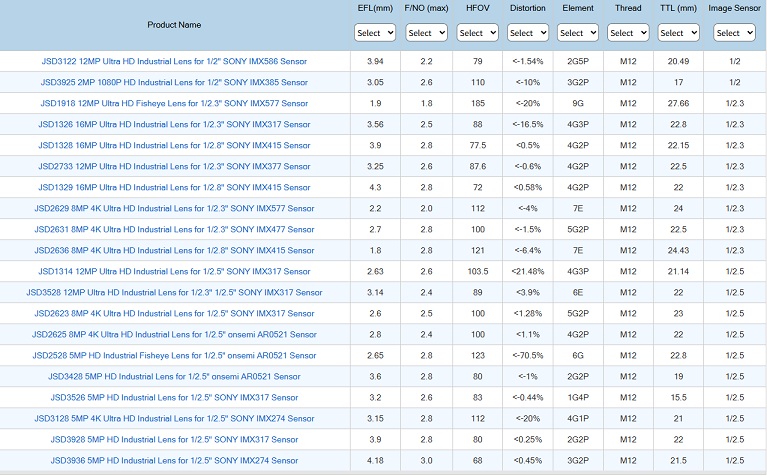

Looking for a lens with slightly different specs? Not all of our products are listed online. Please contact us if you can't find an exact match.
We offer several customizations for our lenses. Contact us to discuss feasibility, minimum order quantities, and NRE requirements.
Custom filters (Bandpass, Dual Notch, etc.)
Customized higher F#
Barrel mechanical design adjustments (e.g. active alignment, ingress protection)
Hydrophobic coating on front optical surface

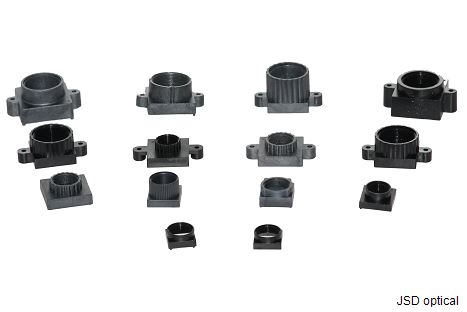

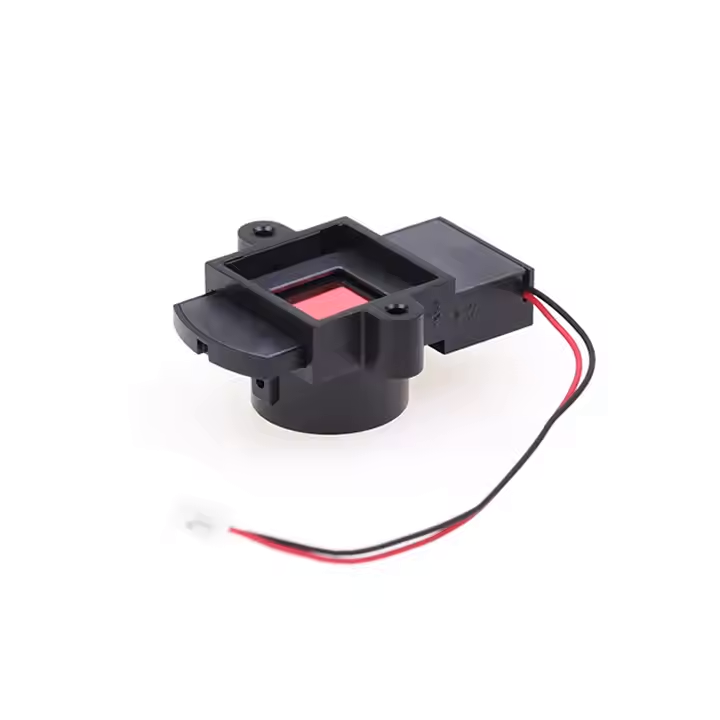

Preassembly with M12 lens holders to reduce anodization debris and tilt
Optical data (MTF, EFL, etc.) with serialized unit-level traceability
