JSD1430

Product Overview

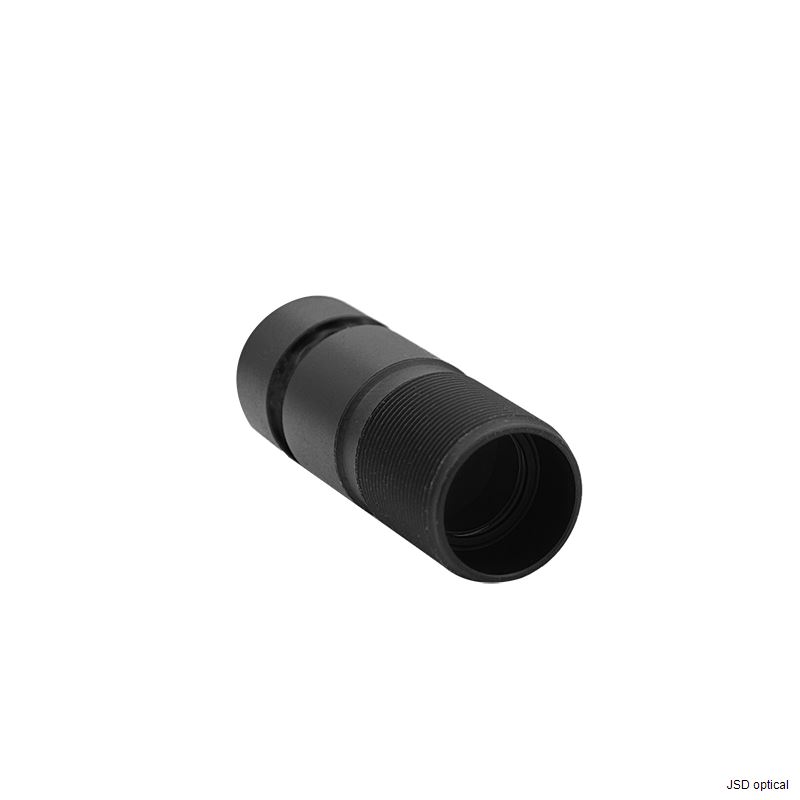

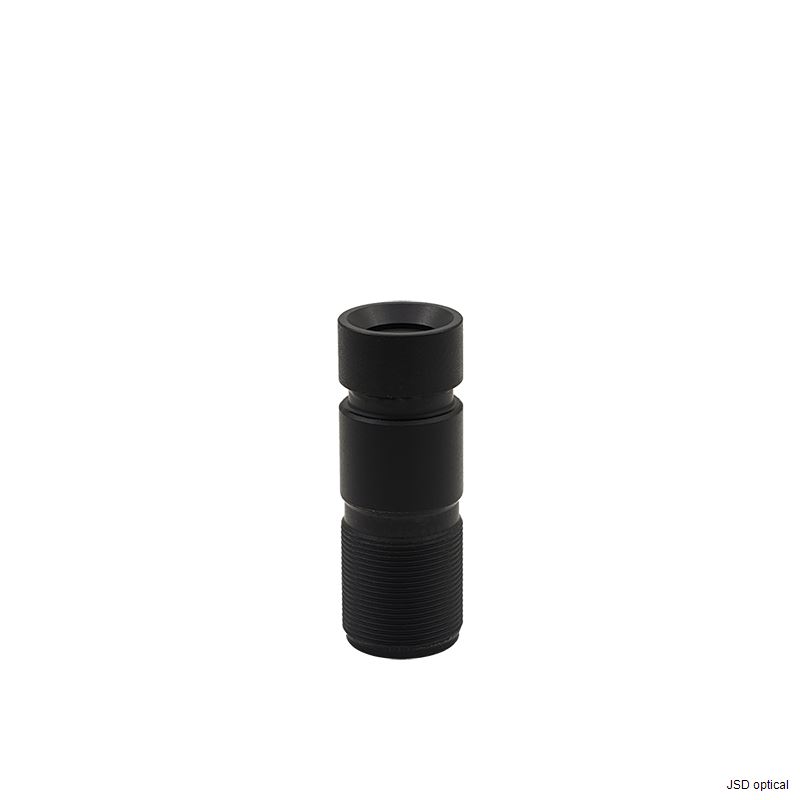

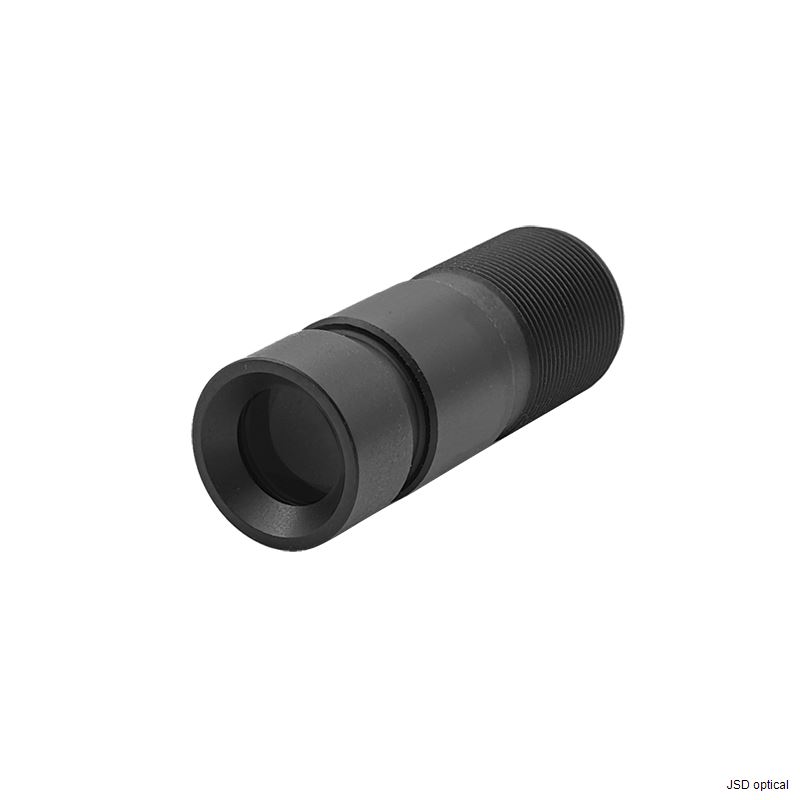

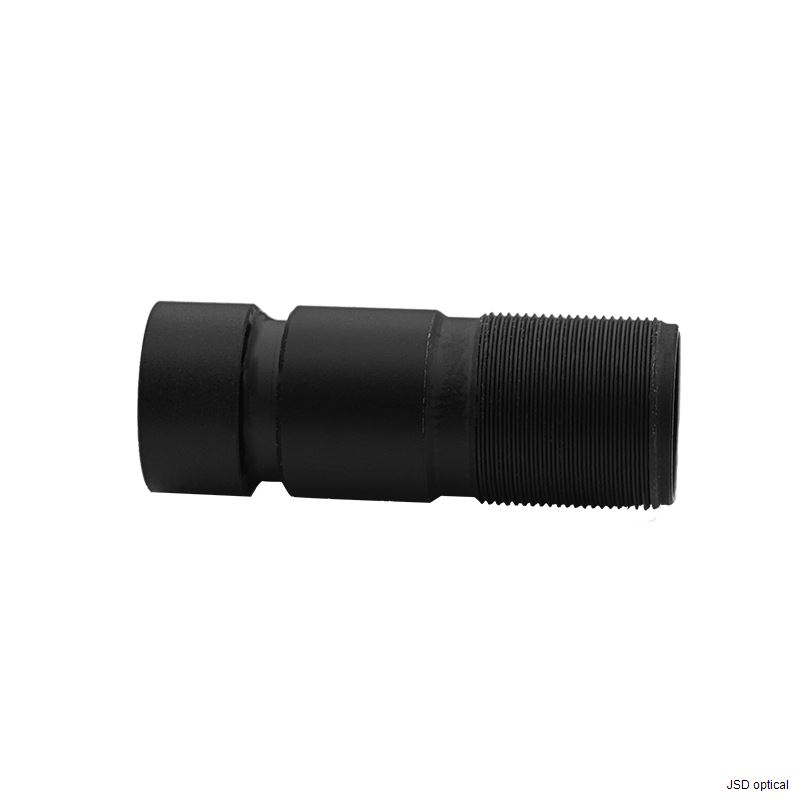

This ultra-low distortion telephoto M12 mount lens is a high-precision optical solution engineered for 1/2.65-inch image sensors, prioritizing extreme geometric fidelity and long-range clarity. Featuring a 14.67mm focal length and an F3.0 aperture, it provides a narrow, highly concentrated 14° field of view, making it the definitive choice for specialized applications requiring high magnification and zero-image warping. With an industry-leading distortion rating of < -0.05% and a 28.22mm Total Track Length (TTL), this lens delivers professional-grade, metrology-quality imaging for critical industrial and scientific vision systems.

Perfectly compatible with the GalaxyCore GC5603 and other 1/2.65" sensors.

Key Features & Benefits

• Near-Zero Distortion (< -0.05%): Advanced telecentric-like optical performance virtually eliminates geometric errors, ensuring maximum accuracy for precise measurement and high-end scanning tasks.

• Optimized for 1/2.65" Sensors: Specifically calibrated to match the 1/2.65" sensor format, ensuring uniform sharpness across the entire image circle and maximizing pixel-level detail.

• Concentrated 14° Narrow FOV: Provides a powerful telephoto perspective, allowing for high-detail capture of distant subjects with minimal background interference—ideal for targeted inspection.

• High-Resolution 14.67mm Optics: Engineered to resolve fine details at significant distances, delivering the crisp image quality essential for modern high-resolution industrial modules.

• Slim & Precision Build: Featuring a sleek Φ7.0mm diameter and a 28.22mm TTL, this lens offers a unique combination of long-focal-length performance and a compact mechanical footprint.

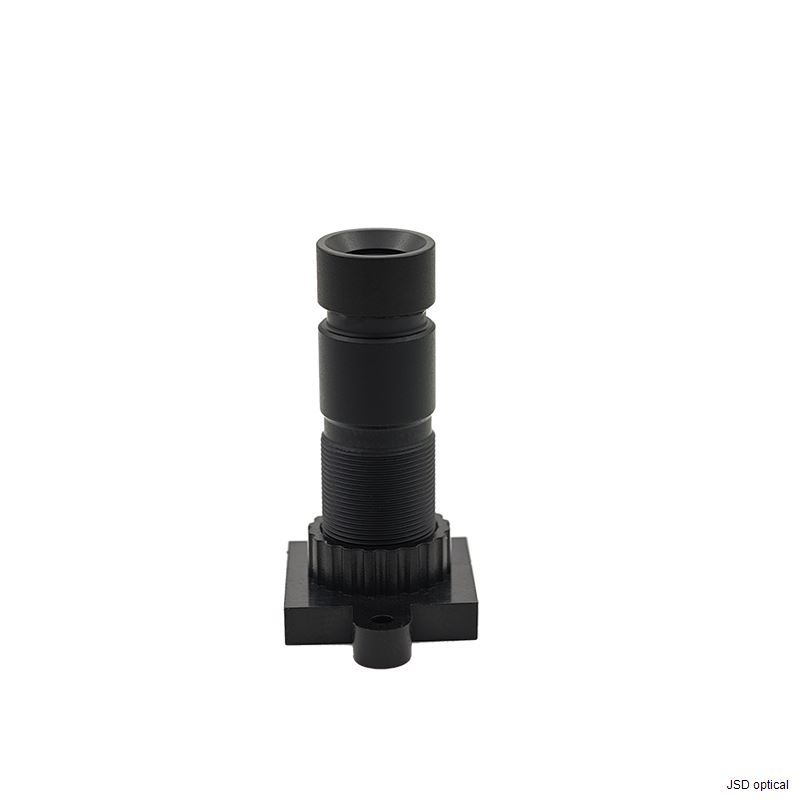

• Universal M12 Interface: Utilizes the industry-standard M12*P0.5 mount, ensuring seamless integration and high repeatability across a wide spectrum of AIoT and industrial hardware.

Applications

• High-Precision Metrology & Industrial Inspection: Perfect for automated optical inspection (AOI) where geometric measurements are critical.

• Long-Range Barcode & Plate Recognition: Captures fine text or codes from significant distances with zero warping.

• Automated Laboratory & Medical Analysis: Ideal for high-detail imaging in clinical diagnostic equipment.

• Precision Alignment Systems: Supporting robotic arms and pick-and-place machines requiring a narrow, accurate view.

• Specialized Scanning & Archiving: Digitizing documents or artifacts with absolute geometric integrity.

• Traffic Surveillance (Narrow Lane Monitoring): Targeted monitoring of specific lanes or distant objects in intelligent transport systems.

Specification

Why Choose JSD Optoelectronics?

Shenzhen JSD Optoelectronics is a leading manufacturer of custom optical lenses, specializing in high-precision solutions since 2009. We offer:

1).ISO 9001 & IATF 16949 Certified Quality

2).Rapid Prototyping (15-day custom sample turnaround)

3).End-to-End Support from design to mass production

4).300+ Standard Designs for immediate sampling

If you would like to customize a lens, please send an email to: info@jsdoptical.com
