JSD5426

Product Overview

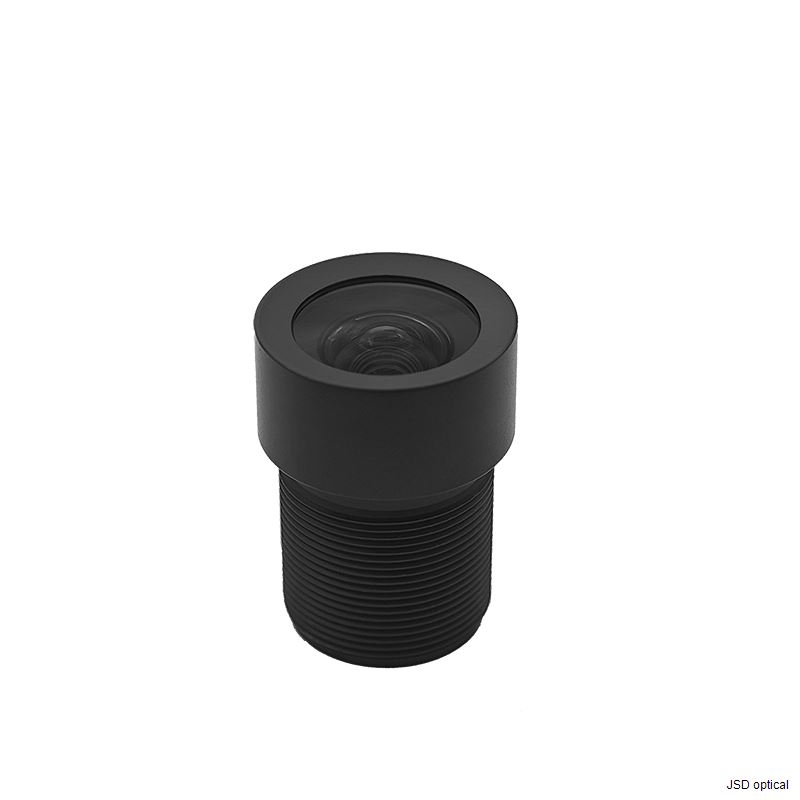

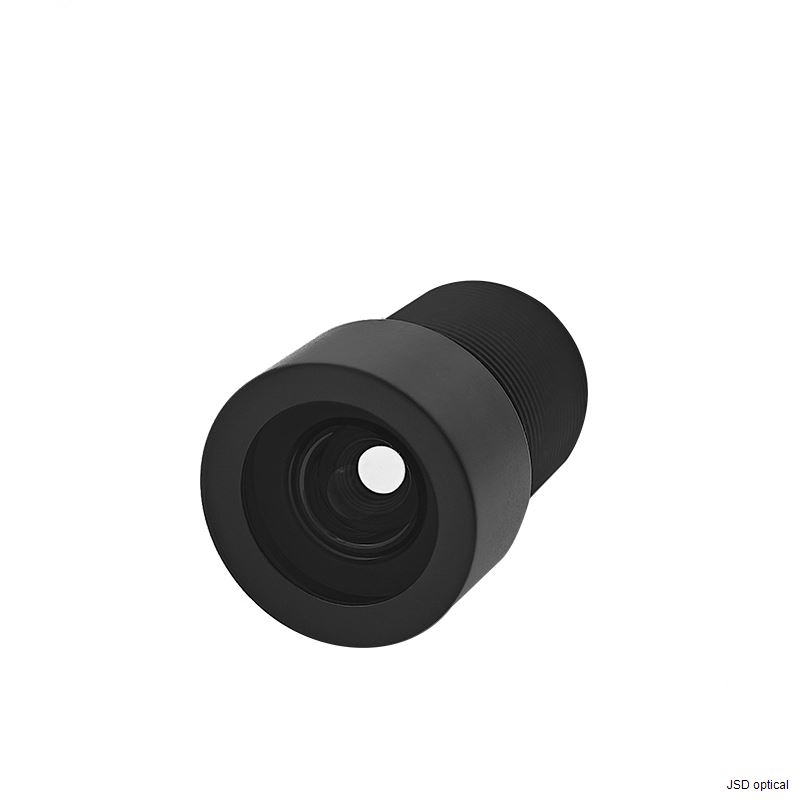

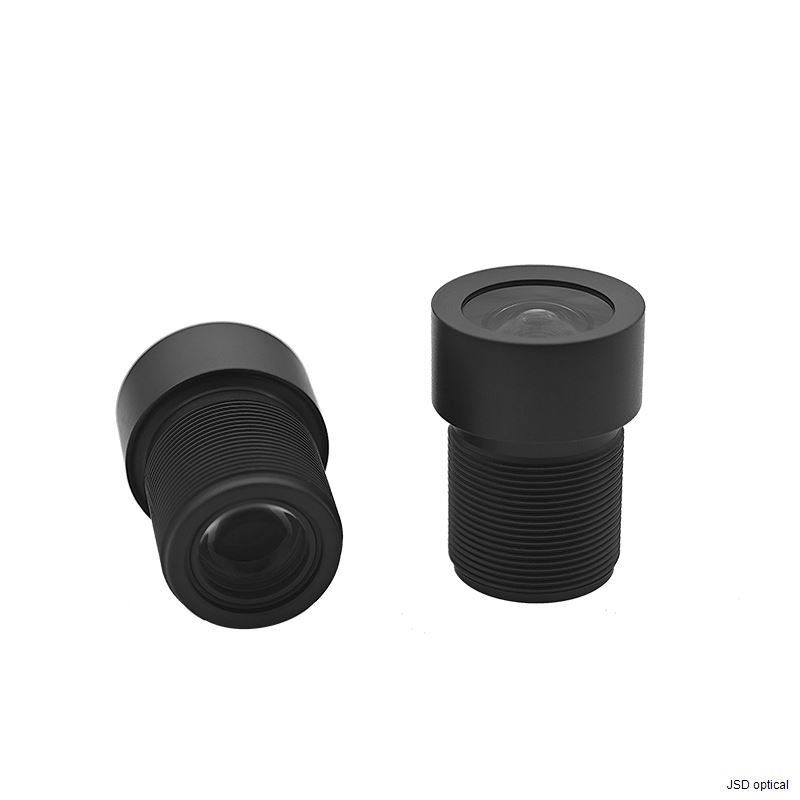

This high-precision M12 mount fixed focal lens is expertly engineered for 1/2.6-inch image sensors, delivering exceptional clarity with a focus on geometric accuracy. Featuring a 5.4mm focal length and an F2.6 aperture, it provides a concentrated 56° field of view, making it an ideal choice for applications where image fidelity and minimal distortion are paramount. With an ultra-low distortion rating of < -0.2% and a compact 23.55mm Total Track Length (TTL), this lens ensures professional-grade imaging for specialized industrial and commercial vision systems.

Perfectly compatible with the SmartSens SC233HGS and other 1/2.6" sensors.

Key Features & Benefits

• Ultra-Low Distortion (< -0.2%): Advanced optical design virtually eliminates geometric distortion, ensuring straight lines remain straight—critical for scanning, measurement, and recognition tasks.

• Optimized for 1/2.6" Sensors: Specifically tailored to match the 1/2.6" sensor format, maximizing the active pixel area for superior edge-to-edge sharpness and zero vignetting.

• Focused 56° Field of View: Provides a balanced mid-range perspective that captures significant detail with a natural look, perfect for targeted monitoring and identification.

• Precision 5.4mm Optics: Delivers high-resolution performance and consistent image quality across the entire frame, suitable for modern high-megapixel modules.

• Compact & Lightweight Build: With a slim Φ9.0mm diameter and a 23.55mm TTL, this lens integrates easily into streamlined housings and space-constrained hardware.

• Robust M12 Standard: Utilizes the industry-standard M12*P0.5 thread, offering seamless compatibility with a vast array of industrial camera modules and AIoT devices.

Applications

• Industrial Inspection & Metrology (due to ultra-low distortion)

• High-Precision Barcode & QR Scanning

• Facial Recognition & Biometric Access Control

• ALPR (Automatic License Plate Recognition) Systems

• Automated Retail & Smart Checkout Systems

• Medical Imaging Devices

• High-End Video Conferencing Terminals

Specification

Why Choose JSD Optoelectronics?

Shenzhen JSD Optoelectronics is a leading manufacturer of custom optical lenses, specializing in high-precision solutions since 2009. We offer:

1).ISO 9001 & IATF 16949 Certified Quality

2).Rapid Prototyping (15-day custom sample turnaround)

3).End-to-End Support from design to mass production

4).300+ Standard Designs for immediate sampling

If you would like to customize a lens, please send an email to: info@jsdoptical.com
