JSD8020

Description

The JSD8020 is a high-performance fixed-focus lens with a focal length of approximately 8mm and a large F2.0 aperture, which effectively enhances light intake and ensures sufficiently bright image capture even in low-light environments. It offers a horizontal field of view (HFOV) of about 39° to 40°, providing a moderate viewing angle. With an optical total length (TTL) of 21.8mm, the lens features a compact structure and incorporates a standard M12 interface for easy installation and integration. It supports a 1/2.5-inch image sensor and maintains optical distortion strictly within -0.54%, delivering highly authentic and minimally distorted images with precision

Application

It is well-suited for machine vision applications demanding high image measurement accuracy and environmental adaptability, such as industrial inspection, precision measurement, and positioning recognition. Additionally, it is applicable to security and surveillance systems requiring reliable imaging (particularly in scenarios emphasizing detail capture), intelligent transportation systems, and as visual components in certain scientific research instruments

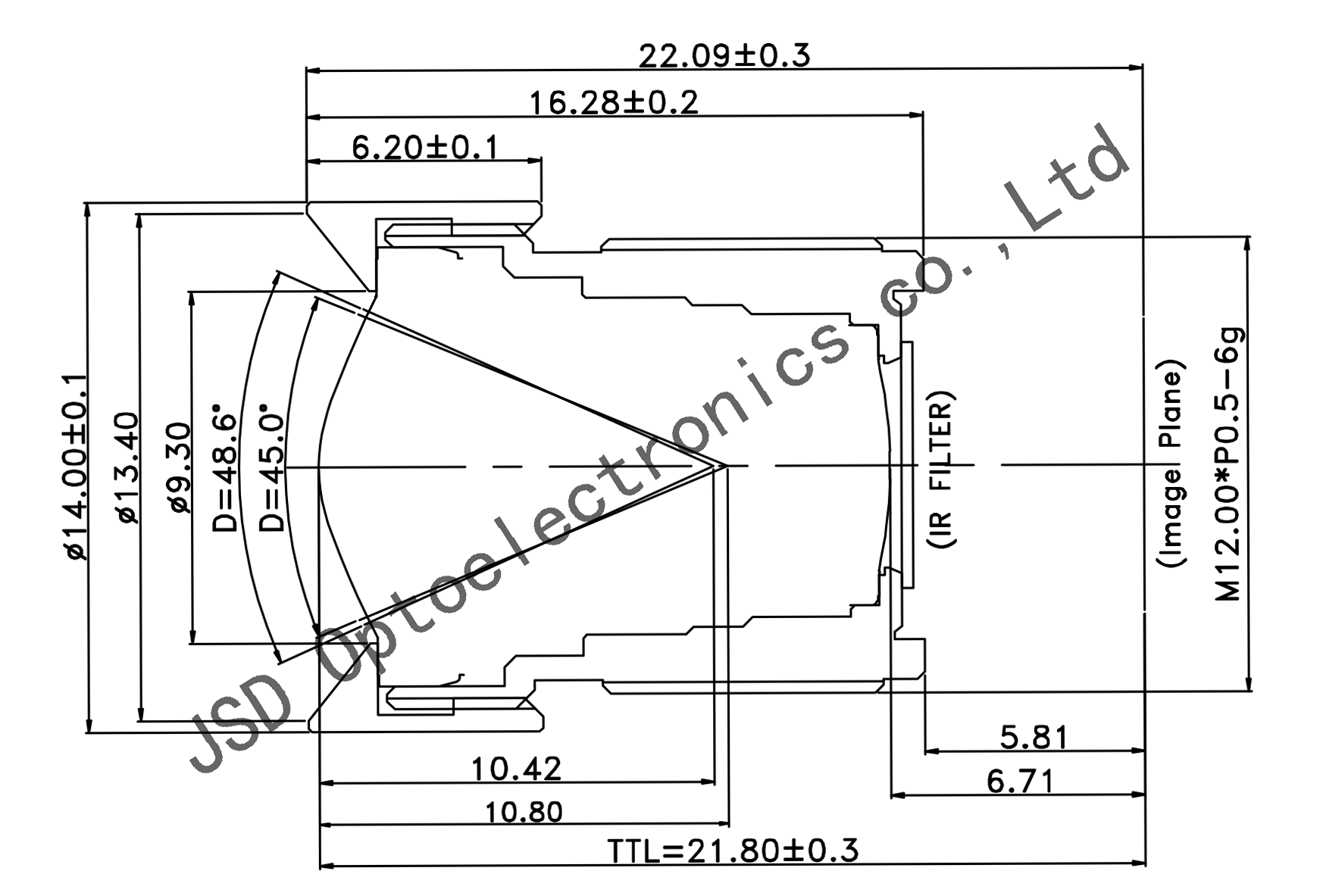

Specification
