JSD3936

Description

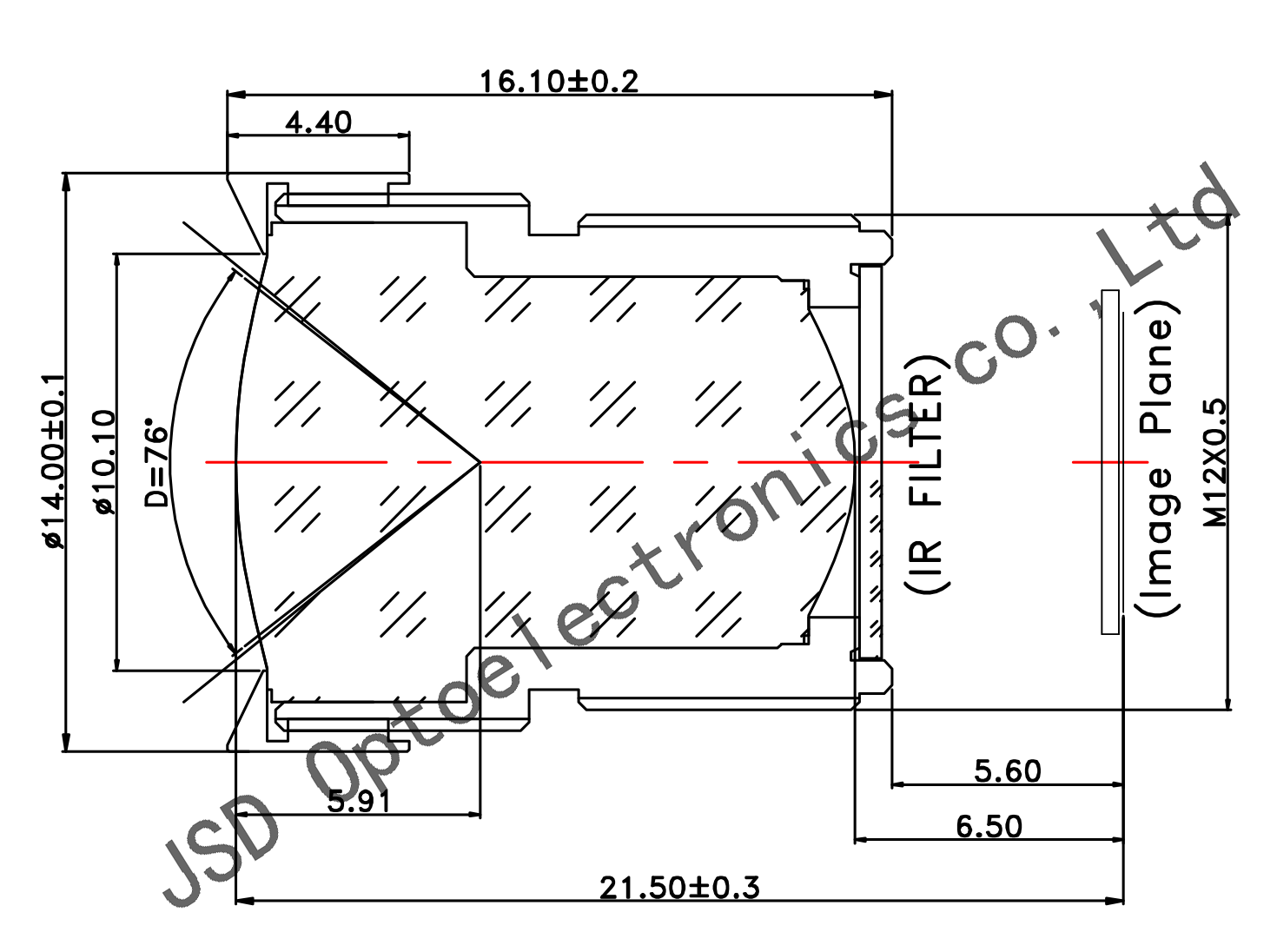

The JSD3936 is a high-performance fixed-focus lens with a focal length of approximately 3.94mm. Its F3.0 aperture ensures excellent light transmission capability under various lighting conditions. Featuring a 68° horizontal field of view (HFOV) and an optical total length (TTL) of 21.5mm, this lens boasts a compact design with a standard M12 interface for easy installation and integration. It supports a 1/2.5-inch image sensor and maintains optical distortion strictly within 0.45%, effectively delivering highly authentic and minimally distorted images, which is crucial for scenarios requiring high-precision imaging

Application

Dimensional Measurement

Scanning and Positioning

Defect Detection

Automotive Imaging

Intelligent Access Control System

Specification
