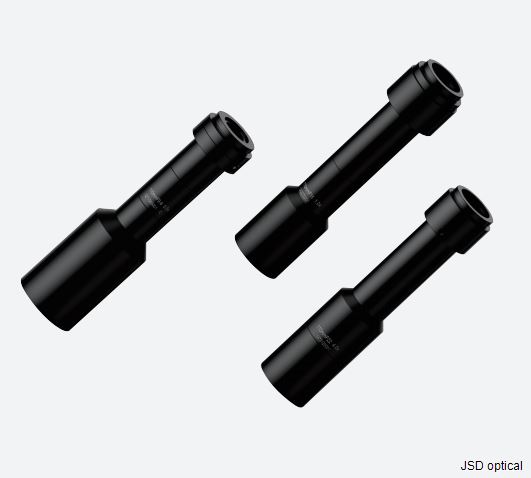

JSDL150110A1_8C Telecentric Lens – 0.01% Distortion, 110mm WD for AOI Precision Measurement
JSDL150110A1_8C Telecentric Lens 1/2 series
Model: Telecentric Lens for 1/2 sensor
Img.Circle: φ8 mm
EFL: 0.8
F#: F18
Distortion: 0.02
WD Range: 110
Mount: C
- Information
- Related Products
Lens Features
Ultra-low Distortion
All models ≤ 0.02%, with the 1.5× model achieving as low as 0.01%
Consistent WD
All lenses share a 110 mm working distance, simplifying system integration
Optical and Mechanical Specification Table
| Model | Img.Circle | Mag. | F# | Distortion(%) | WD (mm) | Conjugate Distance | Mount |
|---|---|---|---|---|---|---|---|
| JSDL080110A1_8C | φ8 mm | 0.8× | F18 | 0.02 | 110 | 210 | C |
| JSDL100110A1_8C | φ8 mm | 1.0× | F20 | 0.02 | 110 | 211 | C |
| JSDL150110A1_8C | φ8 mm | 1.5× | F19 | 0.01 | 110 | 210 | C |
| JSDL200110A1_8C | φ8 mm | 2.0× | F25 | 0.02 | 110 | 217 | C |
Mechanical Layout
Frequently Asked Questions
What sensor size is this 1/2" Series designed for?
This series is designed for 1/2" sensors with an image circle of φ8 mm, covering magnification from 0.8× to 2.0×.
What is the working distance for all models in this series?
All models share a consistent 110 mm working distance, making system integration straightforward and repeatable.
What mount type do these lenses use?
All lenses in the 1/2" Series feature a C-mount interface, compatible with standard 1/2" industrial cameras.
Are coaxial illumination versions available for this series?
Currently, only non-coaxial (JSDL) models are listed. For coaxial illumination versions, please refer to the 2/3" series or contact our sales team.
The 1/2" Series (Sensor Size φ8 mm) telecentric lenses from JSD Optics deliver ultra-low distortion — all models ≤ 0.02%, with the 1.5× model achieving as low as 0.01%. A consistent 110 mm working distance across all models simplifies system integration, while the C-mount interface ensures broad compatibility with standard industrial cameras. The compact conjugate distance (≈210–217 mm) enables space-saving setups for high-precision small-field measurement, alignment, and inspection applications.
