Telecentric Lens for 2/3" Sensor serise – 0.01% Distortion with Coaxial Illumination

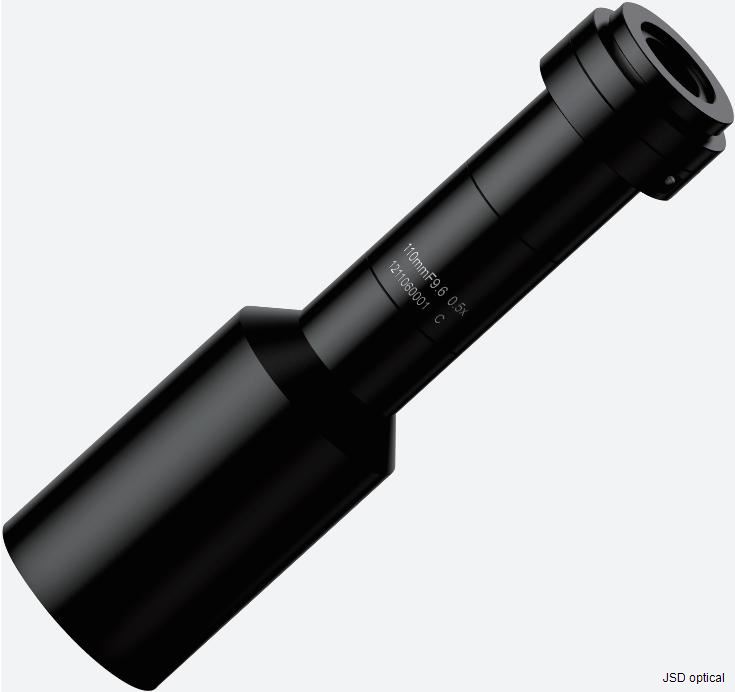

Telecentric Lens for 2/3\" Sensors
Model: φ11 mm
Img.Circle: 3
EFL: 110
F#: F18.3
Distortion: 0.02
WD Range: 110
Mount: C
- Information
- Related Products
Lens Features
Low Distortion
Distortion as low as 0.01%–0.05% across the series.
Dual WD Options
Available in 65mm and 110mm working distances for flexible system integration.
Optical and Mechanical Specification Table
| Model | Magnification | F/# | Distortion(%) | Conjugate Distance (mm) | Mount |
|---|---|---|---|---|---|
| JSDL030110A | 0.3 | F5.6 | 0.02 | 246 | C |
| JSDL050110C | 0.5 | F9.6 | 0.05 | 246 | C |
| JSDL080110B | 0.8 | F11 | 0.05 | 246 | C |
| JSDL100110B | 1.0 | F11 | 0.05 | 246 | C |
| JSDL150110A | 1.5 | F10 | 0.04 | 256 | C |
| JSDL200110A | 2.0 | F12.2 | 0.04 | 261 | C |
| JSDL300110A | 3.0 | F18.3 | 0.02 | 293 | C |
| JSDL400110A | 4.0 | F22 | 0.02 | 258 | C |
| JSDL500110A | 5.0 | F31 | 0.26 | 288 | C |
| JSDL600110A | 6.0 | F38.6 | 0.04 | 283 | C |
| JSDC030110A | 0.3 | F5.6 | 0.02 | 248 | C |
| JSDC050110C | 0.5 | F9.6 | 0.05 | 258 | C |
| JSDC080110B | 0.8 | F11 | 0.05 | 249 | C |
| JSDC100110B | 1.0 | F11 | 0.05 | 262 | C |
| JSDC150110A | 1.5 | F10 | 0.04 | 262 | C |
| JSDC200110A | 2.0 | F12.2 | 0.04 | 265 | C |
| JSDC300110A | 3.0 | F18.3 | 0.02 | 298 | C |
| JSDC400110A | 4.0 | F22 | 0.02 | 262 | C |
| JSDC500110A | 5.0 | F31 | 0.26 | 293 | C |
| JSDC600110A | 6.0 | F38.6 | 0.04 | 288 | C |
Sensor size: φ11 mm (2/3") | Working distance: 110 mm
| Model | Magnification | F/# | Distortion(%) | Conjugate Distance (mm) | Mount |
|---|---|---|---|---|---|
| JSDL030065A | 0.3 | F10 | 0.02 | 169 | C |
| JSDL050065A | 0.5 | F10 | 0.05 | 172 | C |
| JSDL080065A | 0.8 | F10 | 0.05 | 172 | C |
| JSDL100065A | 1.0 | F11 | 0.05 | 163 | C |
| JSDL150065A | 1.5 | F12.5 | 0.12 | 158 | C |
| JSDL200065A | 2.0 | F13.2 | 0.045 | 162 | C |
| JSDL300065A | 3.0 | F20.2 | 0.04 | 167 | C |
| JSDL400065A | 4.0 | F17.9 | 0.06 | 188 | C |
| JSDL500065A | 5.0 | F22 | 0.05 | 198 | C |
| JSDL600065A | 6.0 | F24.6 | 0.05 | 195 | C |
| JSDC030065A | 0.3 | F10 | 0.01 | 172 | C |
| JSDC050065A | 0.5 | F10 | 0.05 | 174 | C |
| JSDC080065A | 0.8 | F10 | 0.05 | 176 | C |
| JSDC100065A | 1.0 | F11 | 0.05 | 166 | C |
| JSDC150065A | 1.5 | F12.5 | 0.12 | 160 | C |
| JSDC200065A | 2.0 | F13.2 | 0.045 | 166 | C |
| JSDC300065A | 3.0 | F20.2 | 0.04 | 171 | C |
| JSDC400065A | 4.0 | F17.9 | 0.06 | 191 | C |
| JSDC500065A | 5.0 | F22 | 0.05 | 203 | C |
| JSDC600065A | 6.0 | F24.6 | 0.05 | 200 | C |
Sensor size: φ11 mm (2/3") | Working distance: 65 mm

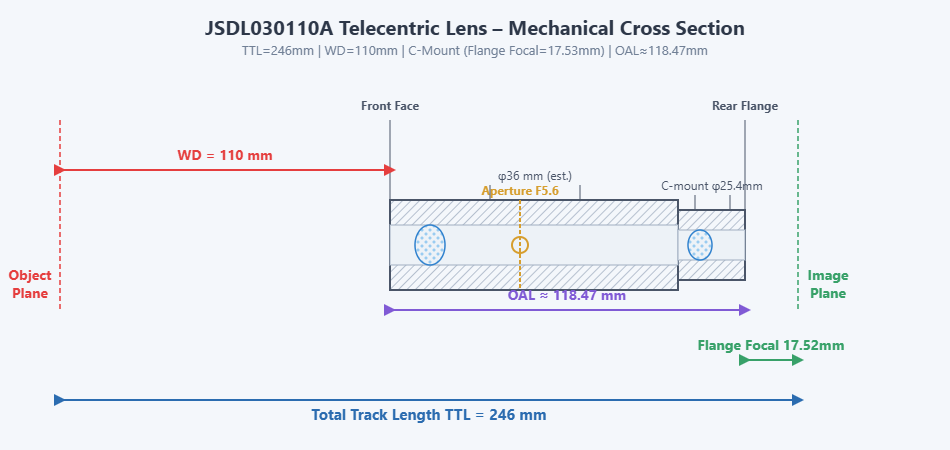

Mechanical Layout
Frequently Asked Questions
What sensor size are these telecentric lenses designed for?
These lenses are designed for 2/3" sensors (φ11 mm image circle) and feature a C-mount interface.
What are the available working distances?
The series offers 65 mm (short) and 110 mm (standard) working distance options across 40 models — 20 L-type standard and 20 C-type coaxial.
What is the magnification range of this series?
The magnification range covers 0.3× to 6.0×, with distortion as low as 0.01%–0.05% for precision imaging applications.
Here are the specifications for the 2/3" series telecentric lenses, covering both the 110mm working distance and the 65mm working distance groups, including both L (standard) and C (coaxial) types.
Sensor size: φ11 mm (2/3") | Mount type: C-mount | Magnification range: 0.3× ~ 6.0× | Working distance options: 65 mm (short) and 110 mm (standard) | Number of models: 40 models total (20 L-type standard + 20 C-type coaxial)
