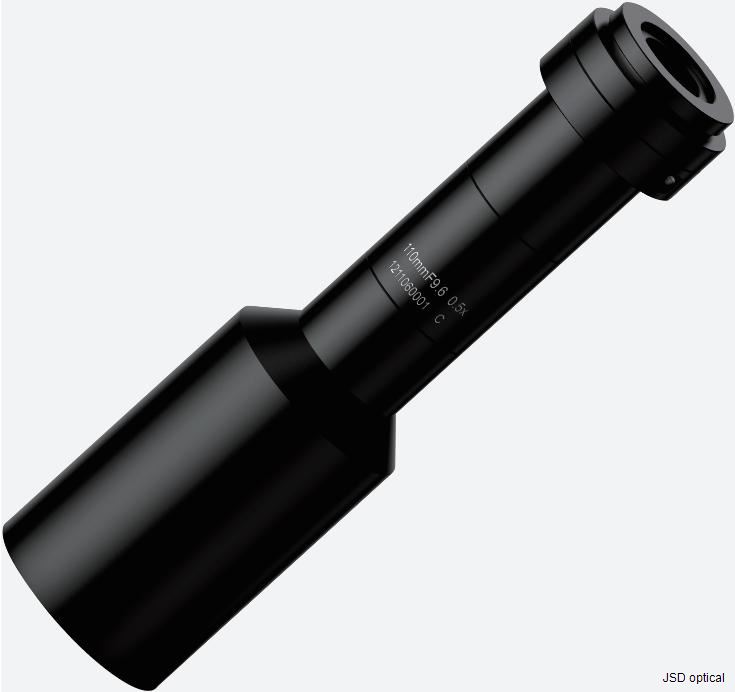

1.2" Series Telecentric Lens · JSD Optics

Lens Features

Ultra-Low Distortion

Distortion ≤0.05% (most models ≤0.02%).

Dual Structure

Both coaxial (JSDC) and non-coaxial (JSDL) types available.

Optical and Mechanical Specification Table

Model	Img.Circle	Mag.	F#	Distortion(%)	WD (mm)	Conjugate Distance	Mount
JSDC050110A1_20C	φ19.2 mm	0.5×	F8-30	0.02	110	274	C
JSDC080110A1_20C	φ19.2 mm	0.8×	F8-30	0.01	110	264	C
JSDC100110A1_20C	φ19.2 mm	1.0×	F10.5-30	0.01	110	260	C
JSDC150110A1_20C	φ19.2 mm	1.5×	F10-30	0.02	110	276	C
JSDC200110A1_20C	φ19.2 mm	2.0×	F10-30	0.02	110	287	C
JSDL032220A	φ19.2 mm	0.32×	F8-22	0.02	220	445	C
JSDL039220A	φ19.2 mm	0.39×	F8-22	0.05	220	440	C
JSDL080110A1_20C	φ19.2 mm	0.8×	F8-30	0.01	110	264	C
JSDL150110A1_20C	φ19.2 mm	1.5×	F10-30	0.02	110	276	C

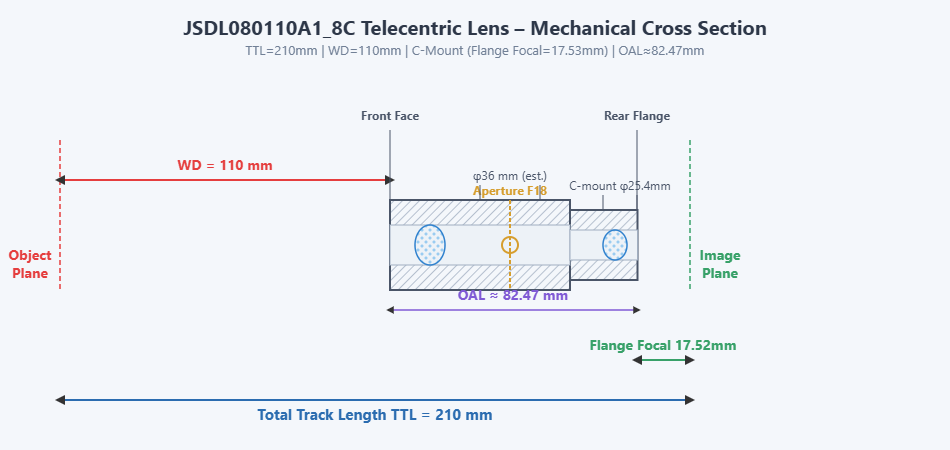

Mechanical Layout

Same Day Ship by 12 PM PST

30+ Optical Engineering Support

100% MTF Tested

Frequently Asked Questions

What image circle does the 1.2" Series support?

The 1.2" Series features an Image Circle of φ19.2 mm.

What is the magnification range for this series?

The magnification range is 0.32× ~ 2.0×.

What mount type do all models use?

All models use a C-mount.

What is the working distance of the 1.2" Series lenses?

Available working distances are 110 mm and 220 mm.

Here are the complete specifications for the 1.2" Series (Image Circle φ19.2 mm) from the JSD Telecentric Lens database.

Summary for 1.2" Series: Image Circle φ19.2 mm, Magnification Range 0.32× ~ 2.0×, Working Distance Options 110 mm and 220 mm, Mount C-mount (all models), Distortion Ultra-low ≤0.05% (most models ≤0.02%), both coaxial (JSDC) and non-coaxial (JSDL) types available.
