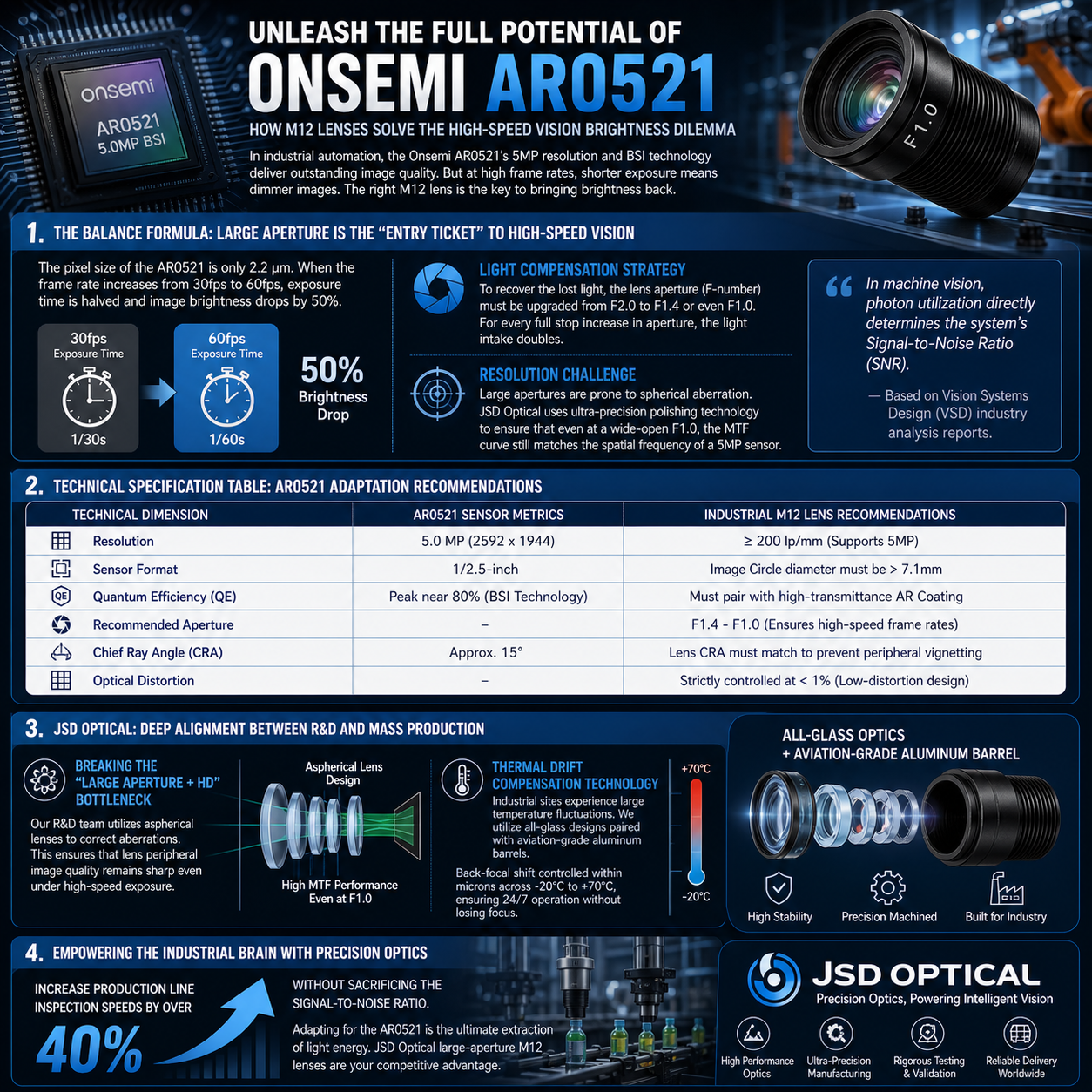

M12 Lenses for AR0521: Outrunning "Optical Loss" in High-Speed Imaging
In industrial automation, the Onsemi AR0521 sensor is highly favored for its 5-megapixel resolution and BSI (Back-Illuminated) technology. However, in high-speed inspection scenarios, engineers often face a dilemma: increasing the frame rate shortens exposure time, resulting in a dim image.
How can M12 lens selection solve this problem? It is not just about optical design; it is a rigorous test of a supplier's delivery capabilities.
1. The Balance Formula: Large Aperture is the "Entry Ticket" to High-Speed Vision
The pixel size of the AR0521 is only 2.2 μm. According to the laws of light energy transfer, when the frame rate increases from 30fps to 60fps, exposure time is halved, and image brightness drops by 50%.
Light Compensation Strategy: To recover the lost light, the lens aperture (F-number) must be upgraded from F2.0 to F1.4 or even F1.0. For every full stop increase in aperture, the light intake doubles.
Resolution Challenge: Large apertures are prone to spherical aberration. JSD Optical utilizes ultra-precision polishing technology to ensure that even at a wide-open F1.0, the MTF curve still matches the spatial frequency of a 5MP sensor.
"In machine vision, photon utilization directly determines the system's Signal-to-Noise Ratio (SNR)." — Based on Vision Systems Design (VSD) industry analysis reports.
2. Technical Specification Table: AR0521 Adaptation Recommendations
Based on the official Onsemi AR0521 DataSheet metrics, our recommended lens selection parameters are as follows:
Technical Dimension | AR0521 Sensor Metrics | Industrial M12 Lens Recommendations |
Resolution | 5.0 MP (2592 x 1944) | ≥ 200 lp/mm (Supports 5MP) |
Sensor Format | 1/2.5-inch | Image Circle diameter must be > 7.1mm |
Quantum Efficiency (QE) | Peak near 80% (BSI Technology) | Must pair with high-transmittance AR Coating |
Recommended Aperture | - | F1.4 - F1.0 (Ensures high-speed frame rates) |
Chief Ray Angle (CRA) | Approx. 15° | Lens CRA must match to prevent peripheral vignetting |
Optical Distortion | - | Strictly controlled at < 1% (Low-distortion design) |
3. JSD Optical: Deep Alignment Between R&D and Mass Production
To meet the high-performance requirements of the AR0521, JSD Optical provides full-chain support from simulation design to precision manufacturing:
Breaking the "Large Aperture + HD" Bottleneck: Our R&D team utilizes Aspherical Lenses to correct aberrations. This ensures that lens peripheral image quality remains sharp even under high-speed exposure.
Thermal Drift Compensation Technology: Industrial sites experience large temperature fluctuations. We utilize All-Glass designs paired with aviation-grade aluminum barrels. According to field tests, back-focal shift is controlled within microns across environments ranging from -20°C to +70°C, ensuring 24-hour operation without losing focus.
4. Empowering the Industrial Brain with Precision Optics
Adapting for the AR0521 is essentially the ultimate extraction of light energy. By choosing large-aperture M12 lenses developed by JSD Optical, you can increase production line inspection speeds by over 40% without sacrificing the signal-to-noise ratio.
