In the action camera sector, 1/2.3-inch sensors (such as the Sony IMX377 and IMX117) are the mainstream choice for achieving high-frame-rate 4K recording. Since action cameras are frequently used for extreme sports, aerial photography, and handheld VLOGs, the M12 Lens design must strike a perfect balance between ultra-wide-angle imaging, distortion control, and structural integrity.

1. Core Design Challenges: Balancing Wide FOV with Peripheral Image Quality

For a 4K action camera solution, the lens design must overcome several technical hurdles:

Ultra-Wide Field of View (Wide FOV): Action cameras typically require a field of view of 150° or even wider. At 4K resolution, the key to a successful design is maintaining edge pixel clarity rather than relying on simple stretching.

Optical Distortion Control: Wide-angle lenses naturally exhibit barrel distortion. Superior action camera lenses utilize aspherical lens designs to minimize distortion at the optical level, thereby reducing image quality loss caused by post-processing algorithmic corrections.

Vibration Resistance and Weatherproofing: Motion scenarios involve severe vibrations and temperature fluctuations; therefore, the lens structure must possess extreme physical stability.

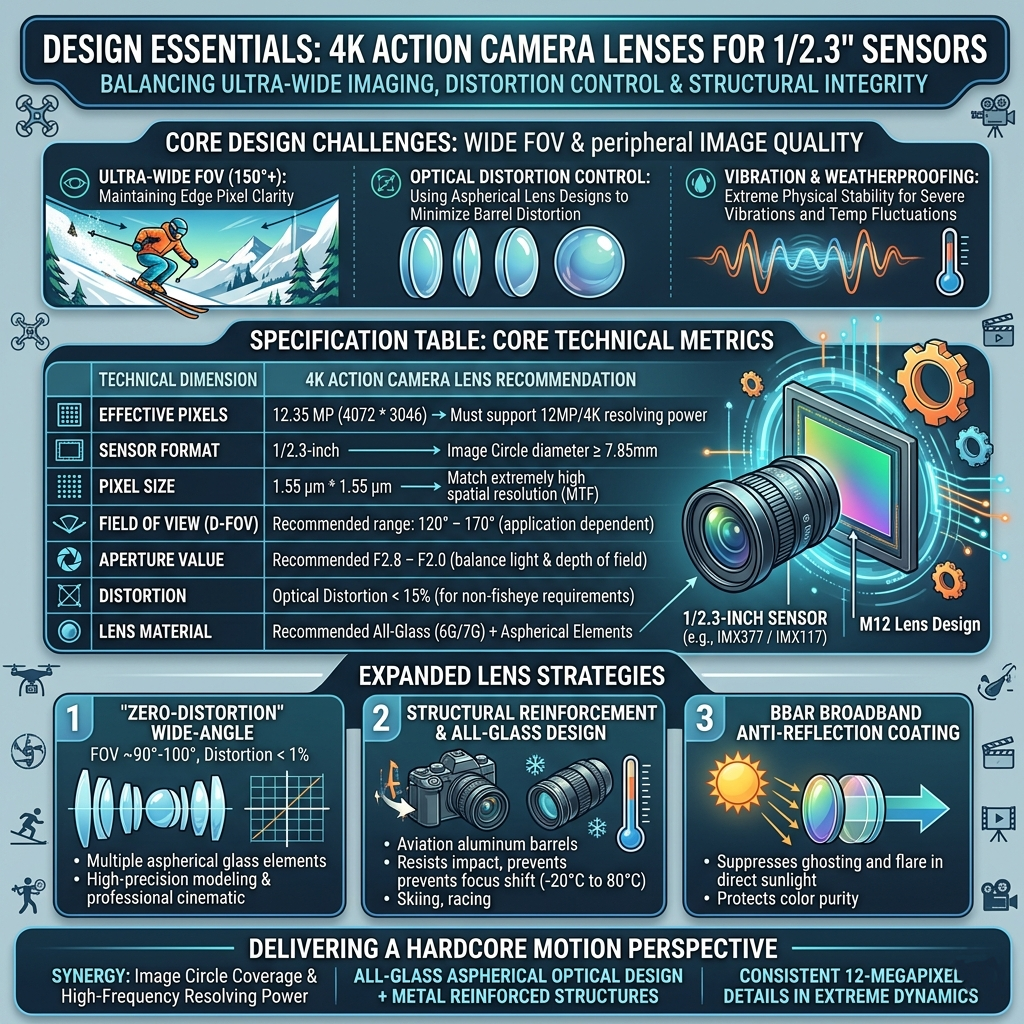

2. Specification Table: Core Technical Metrics for 1/2.3" 4K Action Camera Lenses

To ensure the precision capture and output of 4K images, refer to the following design parameter table:

3. Expanded Lens Strategies

For 4K action camera solutions utilizing 1/2.3" sensors, the following are typical M12 lens configurations:

A. "Zero-Distortion" Wide-Angle Configuration For scenarios requiring high-precision modeling or professional cinematic recording, M12 lenses equipped with multiple aspherical glass elements are chosen. This design achieves a FOV of approximately 90° – 100° while controlling distortion within 1%, ensuring straight lines remain straight and providing raw output that meets 4K precision requirements.

B. Structural Reinforcement and All-Glass Design Since action cameras are prone to drops and impacts, lenses must utilize aviation aluminum barrels. An All-Glass construction not only resists impact but also prevents focus shift across extreme temperature ranges (from -20°C to 80°C), ensuring consistent 4K quality in skiing or racing scenarios.

C. BBAR Broadband Anti-Reflection Coating Action cameras are often used in direct sunlight. Premium M12 lenses apply BBAR coatings to every element surface. This configuration effectively suppresses ghosting and flare, protecting the color purity of the 1/2.3" sensor in high dynamic range scenes.

4. Delivering a Hardcore Motion Perspective

For 1/2.3" sensor based 4K action cameras, the design core lies in the synergy between "image circle coverage" and "high-frequency resolving power". Through the combination of all-glass aspherical optical design and metal reinforced structures, you can ensure that the M12 lens consistently outputs 12-megapixel visual details under any extreme dynamic conditions.
