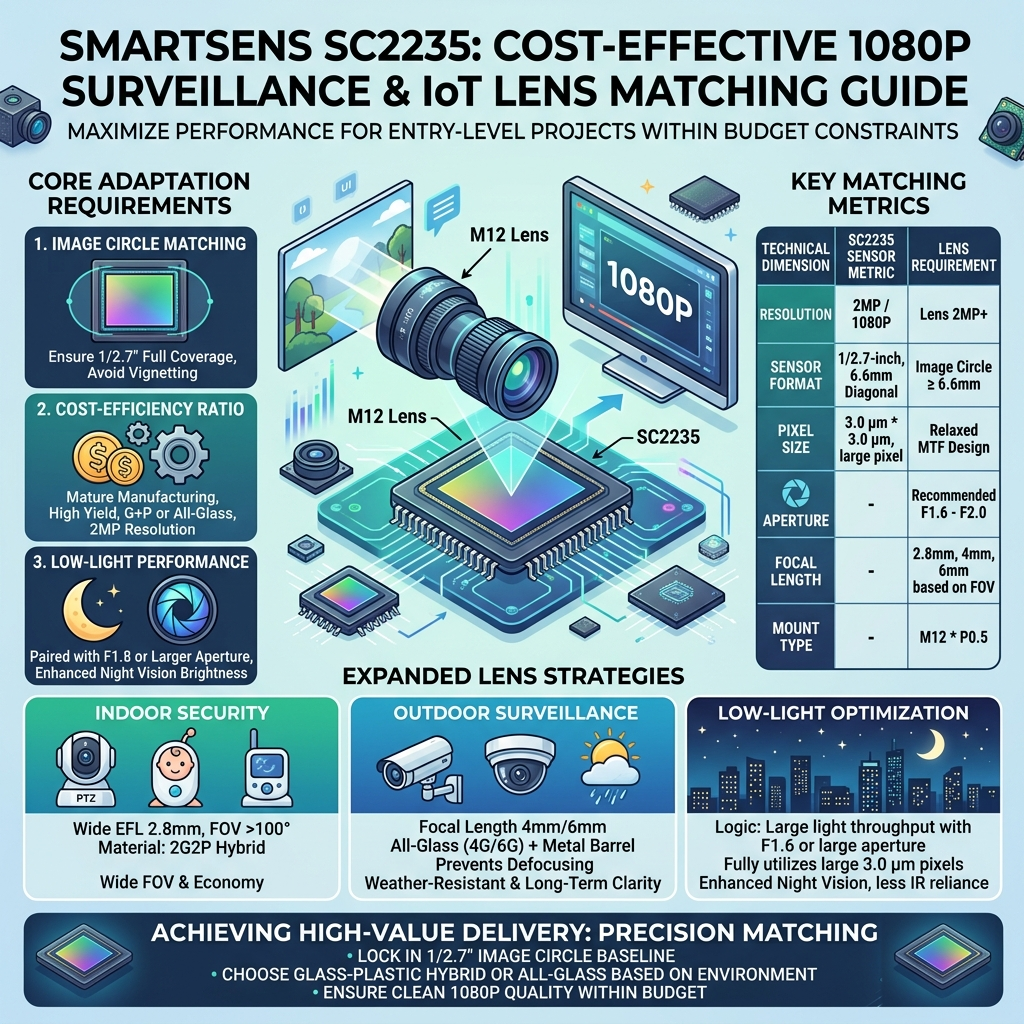

In the development of entry-level security surveillance and cost-effective Internet of Things (IoT) devices, the SmartSens SC2235 has become a widely utilized Sensor Model due to its stable 1080p output and highly competitive cost advantage. To maximize performance in budget-constrained projects, selecting the right M12 Lens combination is key to enhancing overall product competitiveness.

1. Core Adaptation Requirements for SC2235

The SC2235 is a 1/2.7-inch CMOS image sensor. When selecting an M12 lens, the following balance must be prioritized:

Image Circle Matching: As a 1/2.7" sensor, it is slightly larger than the common 1/3" sensors. Therefore, it is essential to ensure the M12 lens's image circle provides full coverage to avoid dark corners (vignetting) at the edges.

Cost-Efficiency Ratio: Since an economically optimized sensor has been chosen, the lens selection should also prioritize mature manufacturing processes with high yields, such as Glass-Plastic (G+P) hybrids or All-Glass solutions, while meeting 2MP (1080p) resolving power.

Low-Light Performance: The SC2235 possesses good sensitivity. Pairing it with an F1.8 or larger aperture lens can significantly enhance the brightness of nighttime surveillance footage.

2. Specification Table: Core Reference Metrics for SC2235 Lens Matching

For mainstream security applications, here are the precision matching recommendations for SC2235 and M12 lens combinations:

3. Expanded Lens Strategies for SC2235

Based on different application scenarios, we recommend the following M12 lens combination strategies:

A. Indoor Security: Combining Wide FOV with Economy

For indoor baby monitors or consumer PTZ cameras, a 2.8mm focal length M12 lens is recommended.

Configuration Key: The image format must reach 1/2.7" to obtain a wide field of view of approximately 100° or more.

Material Suggestion: Consider a 2G2P (Two Glass, Two Plastic) solution to further compress hardware costs while maintaining 1080p clarity.

B. Outdoor Surveillance: Prioritizing Weather Resistance and Clarity

For outdoor bullet cameras that must handle temperature fluctuations, an All-Glass design is a prerequisite.

Configuration Key: Select a 4mm or 6mm focal length. An All-Glass (4G or 6G) structure with a metal barrel effectively prevents defocusing caused by high summer temperatures.

Advantage: Unlike hybrid materials, All-Glass lenses do not age under long-term UV exposure, ensuring stable imaging output for the SC2235 over several years.

C. Low-Light Optimization

If the application requires enhanced night vision, pair the sensor with an F1.6 large-aperture lens.

Logic: The larger light throughput fully utilizes the SC2235’s 3.0 μm large pixels, reducing reliance on IR illuminators in low-light environments and resulting in more natural, detailed images.

4. Achieving "High-Value" Delivery

For solution development based on the SmartSens SC2235, high cost-performance does not mean sacrificing quality; it means precision matching. By locking in the 1/2.7" image circle as the baseline and selecting either Glass-Plastic Hybrid or All-Glass structures based on the environment, you can achieve precise budget control while ensuring clean 1080p image quality.
