JSD3020

Product Overview

This high-performance M12 mount fixed focal lens is expertly engineered for 1/1.8-inch sensors, delivering exceptional clarity and minimal distortion for advanced imaging applications. With a 3mm focal length and F2.0 aperture, it provides an ultra-wide 119° field of view, making it ideal for broad-area surveillance, immersive machine vision, and panoramic scene capture. Featuring True 8MP resolution and manual focus for precise imaging control, this lens ensures superior image sharpness and low distortion across diverse lighting conditions.

Key Features & Benefits

True 8MP Resolution: Delivers crisp, high-definition 4K UHD imaging with exceptional detail retention, ensuring clarity even in complex scenes.

Manual Focus Control: Precise manual adjustment enables accurate focal tuning to match specific object distances, optimizing sharpness for critical applications.

Perfect Sensor Match: Engineered specifically for 1/1.8" sensors (e.g., ONSemi OS08A20), featuring a 3mm image circle that eliminates vignetting and fully utilizes sensor capabilities.

Ultra-Wide 119° FOV: Provides an expansive field of view ideal for panoramic surveillance, environmental monitoring, and large-area scene capture with minimal blind spots.

Low Distortion Design: Advanced optical optimization minimizes barrel distortion, maintaining straight-line accuracy and true-to-life image representation.

Compact & Robust Build: Standard M12*P0.5 thread and compact TTL 9.2mm design ensure seamless integration into space-constrained devices while maintaining durability.

Wide Application Versatility: Suited for broad-area monitoring, traffic scene analysis, indoor security, and machine vision tasks requiring wide coverage.

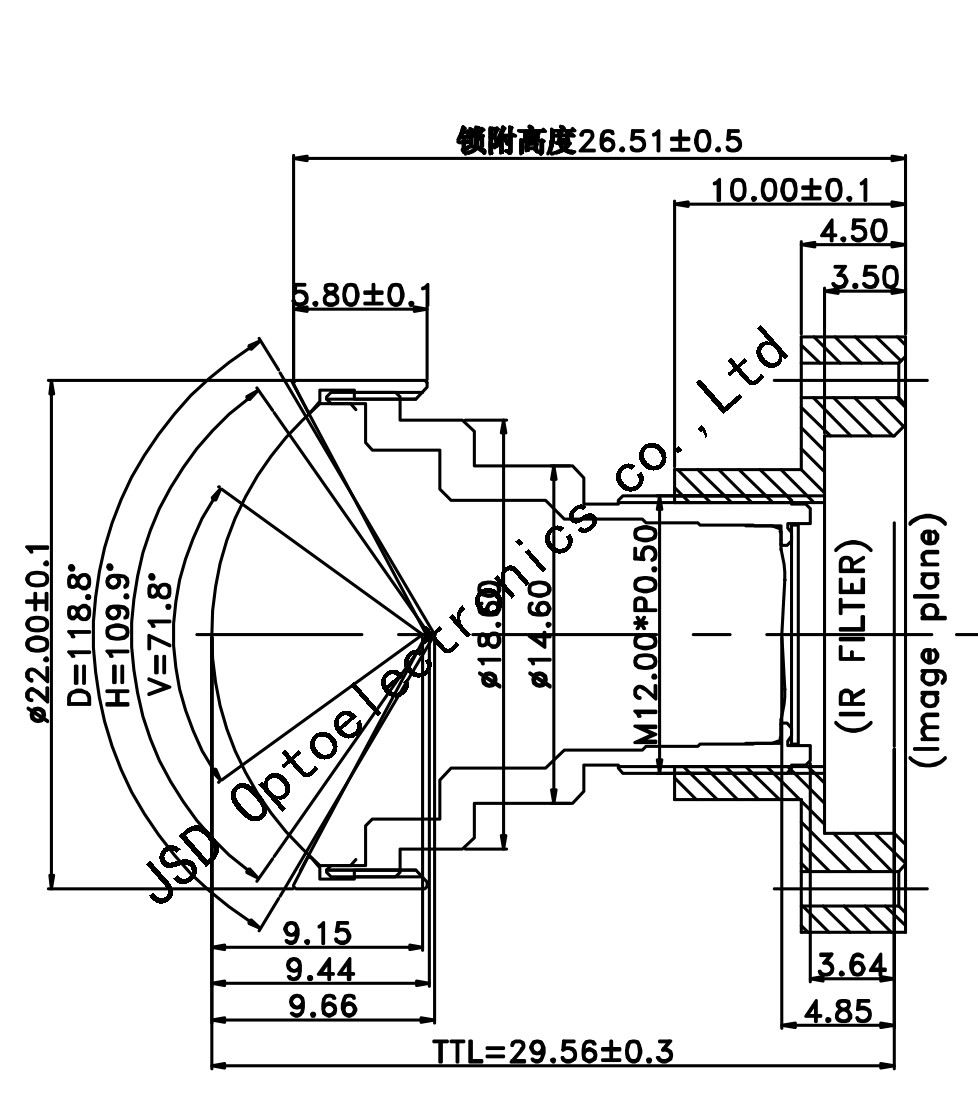

Technical Specifications

Applications

Wide-Area Surveillance: Broad coverage for perimeter monitoring, open-space security, and large environment observation.

Intelligent Transportation Systems (ITS): Traffic flow monitoring, intersection analysis, and wide-road vehicle detection.

Machine Vision: Large-scale inspection, panoramic scene analysis, and broad-area defect detection.

Environmental Monitoring Systems: Situational awareness, area surveillance, and large-scale scene capturing.

Smart City Applications: Cityscape monitoring, public space surveillance, and infrastructure observation.

Drone & Aerial Imaging: Broad field-of-view capture for aerial reconnaissance and wide-area mapping.

Intrusion Detection Systems: Maximum coverage for perimeter security and unauthorized activity monitoring.

Why Choose JSD Optoelectronics?

Shenzhen JSD Optoelectronics is a leading manufacturer of custom optical lenses, specializing in high-precision solutions since 2009. We offer:

1).ISO 9001 & IATF 16949 Certified Quality

2).Rapid Prototyping (15-day custom sample turnaround)

3).End-to-End Support from design to mass production

4).300+ Standard Designs for immediate sampling
