JSD2822

Product Overview

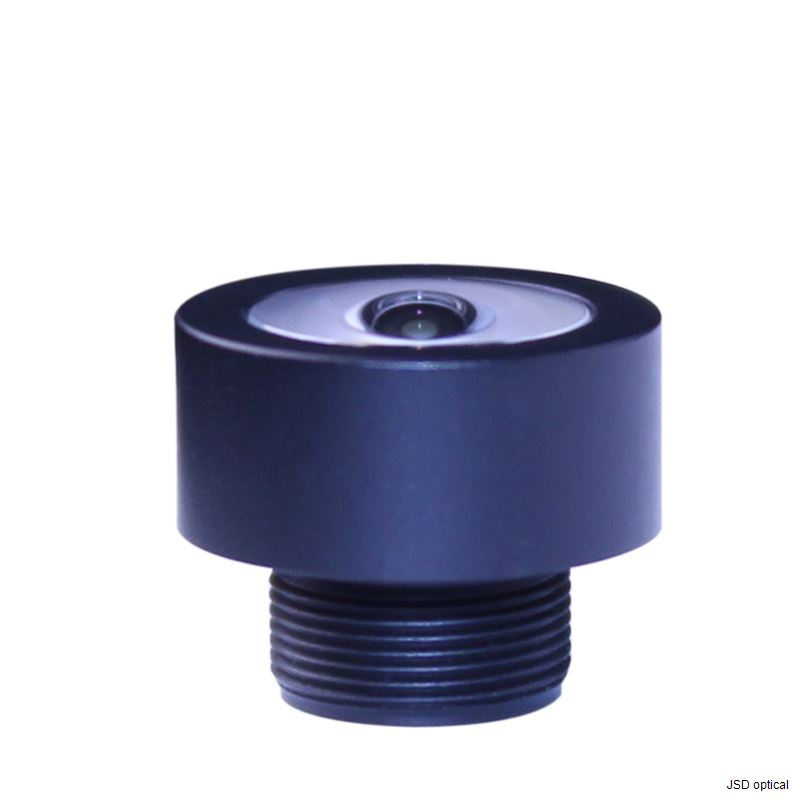

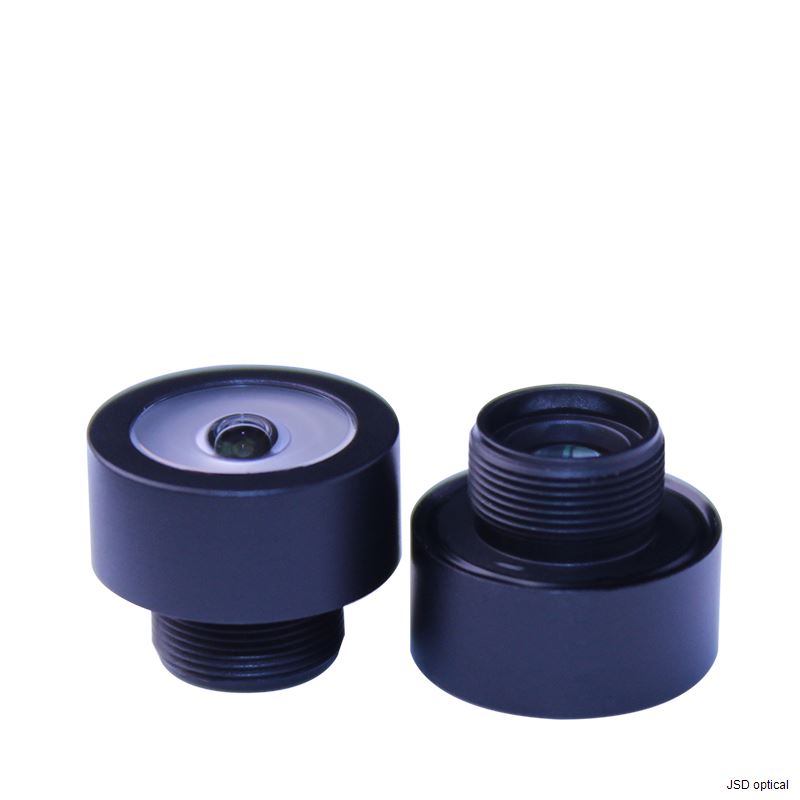

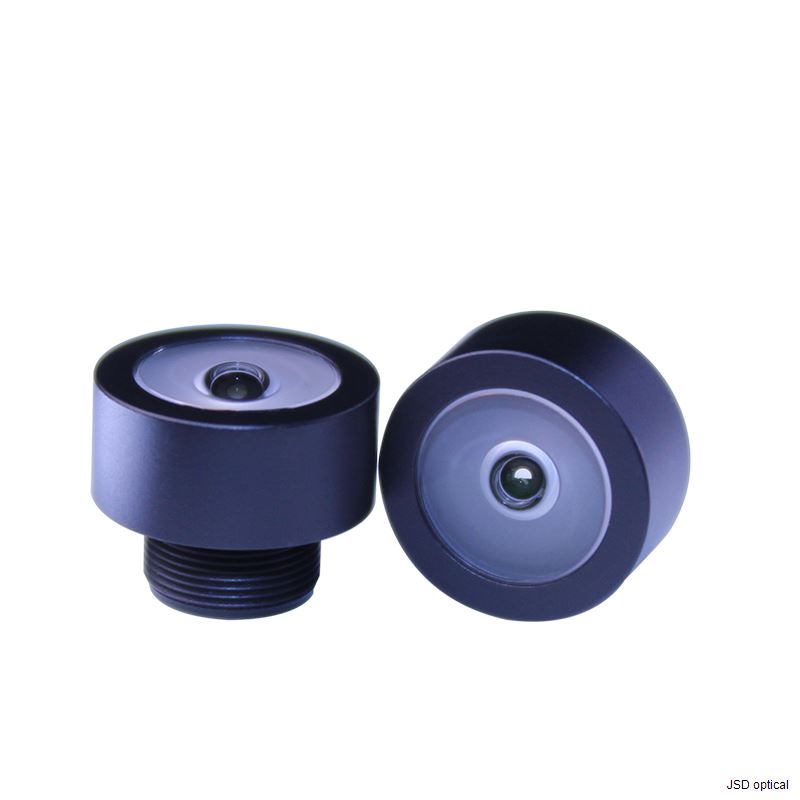

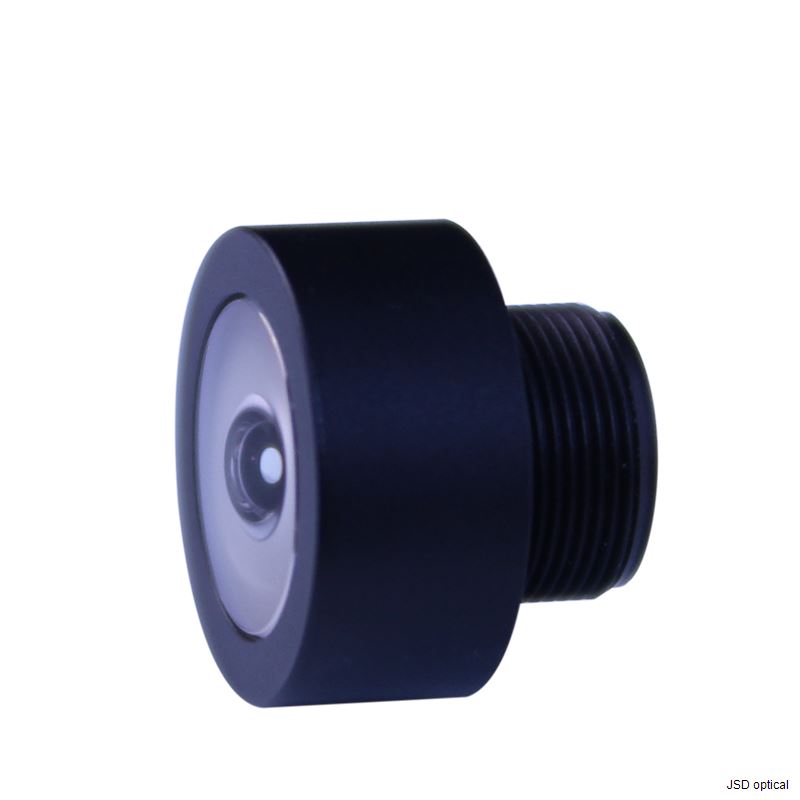

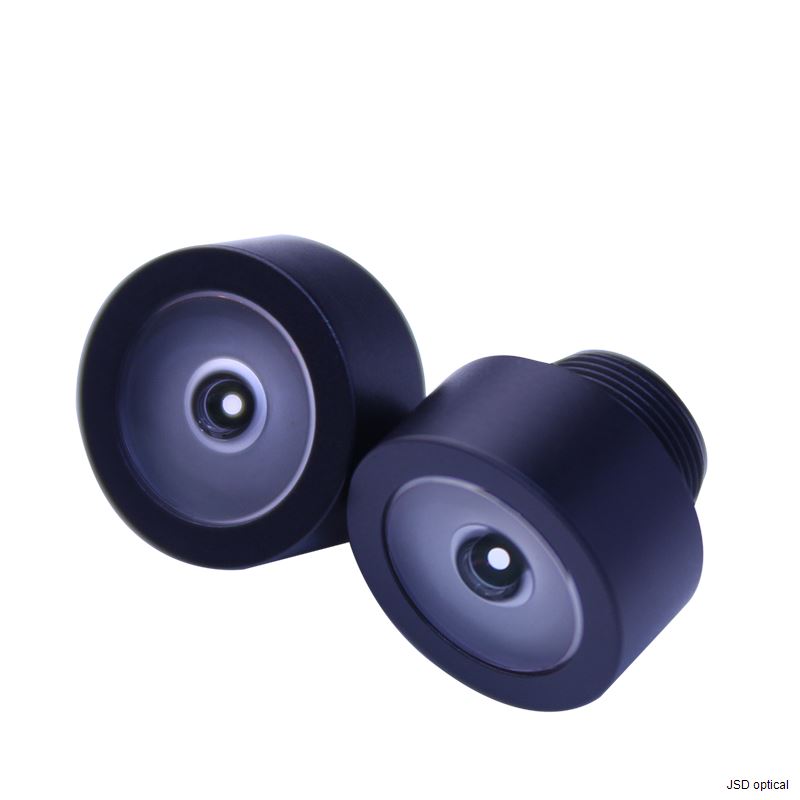

This professional-grade M7 mount fixed focal length lens is engineered for 1/3-inch sensors, providing standard-resolution imaging with low distortion for wide-angle applications. Featuring a 1.89mm focal length and an F3.0 aperture, it delivers a wide 167° field of view, making it well-suited for general monitoring, basic environment observation, and capturing moderately broad areas. The VGA resolution combined with manual focus ensures fundamental image control for reliable performance in various lighting conditions

Key Features & Benefits

Perfect Sensor Match: Designed specifically for 1/3" image sensors, the lens projects an image circle that is fully compatible with this format. This compatibility helps to avoid vignetting and ensures the sensor's imaging area is effectively utilized

Wide 167° FOV: Featuring a wide 167-degree field of view, this lens provides extensive scene coverage, making it a suitable choice for monitoring sizeable areas with a single camera and effectively reducing blind spots

Low Distortion Design: Through optical optimization, the lens maintains low distortion across its wide field of view. This preservation of geometric accuracy is beneficial for applications where a true-to-life representation of the scene is important

Compact & Robust Build: Featuring an M7 mount, this lens is designed for integration into compact and space-constrained imaging devices, with a construction that supports durability in various operating environments

Versatile Application Performance: The combination of a wide field of view, standard resolution, and low distortion makes this lens well-suited for a variety of applications, including basic monitoring, general machine vision tasks, and scenarios where broad coverage with reliable image fidelity is needed

Technical Specifications

Applications

Ultra-Wide Area Surveillance: The 167° wide field of view enables extensive coverage of open spaces such as parking lots, warehouses, and yards with a single device, significantly reducing monitoring blind spots. Its wide perspective is crucial for comprehensive observation of large environments

Perimeter Protection Systems: This lens is ideal for monitoring facility boundaries and property lines, providing broad coverage of fences and access points. The low distortion characteristic helps maintain geometric accuracy for reliable threat assessment along perimeters

Environmental Monitoring: Suitable for full-scene capture in natural settings, this lens supports large-area event observation and panoramic analysis. The wide angle allows for effective monitoring of environmental changes and situational awareness across expansive areas

Intelligent Transportation Systems (ITS): Effective for intersection monitoring and traffic flow analysis on wide roads, the expansive view helps in tracking vehicle movement across multiple lanes. The wide field of view is beneficial for observing complex traffic patterns

Drone & Aerial Imaging: The 167° field of view is advantageous for aerial reconnaissance and wide-area mapping via drones or UAVs, allowing for broad ground coverage. The compact M7 form factor is suitable for airborne platforms where size and weight are constraints

Smart City Applications: Facilitates broad monitoring of cityscapes, public plazas, and critical infrastructure from elevated or single vantage points. The wide perspective supports urban management by providing a comprehensive view of large crowds and public space utilization

Intrusion Detection Systems: Offers wide coverage for detecting unauthorized activity across large perimeters. The wide angle is effective for systems requiring broad zone monitoring with a single camera, enhancing perimeter security and boundary monitoring capabilities

Why Choose JSD Optoelectronics?

Shenzhen JSD Optoelectronics is a leading manufacturer of custom optical lenses, specializing in high-precision solutions since 2009. We offer:

1).ISO 9001 & IATF 16949 Certified Quality

2).Rapid Prototyping (15-day custom sample turnaround)

3).End-to-End Support from design to mass production

4).300+ Standard Designs for immediate sampling
