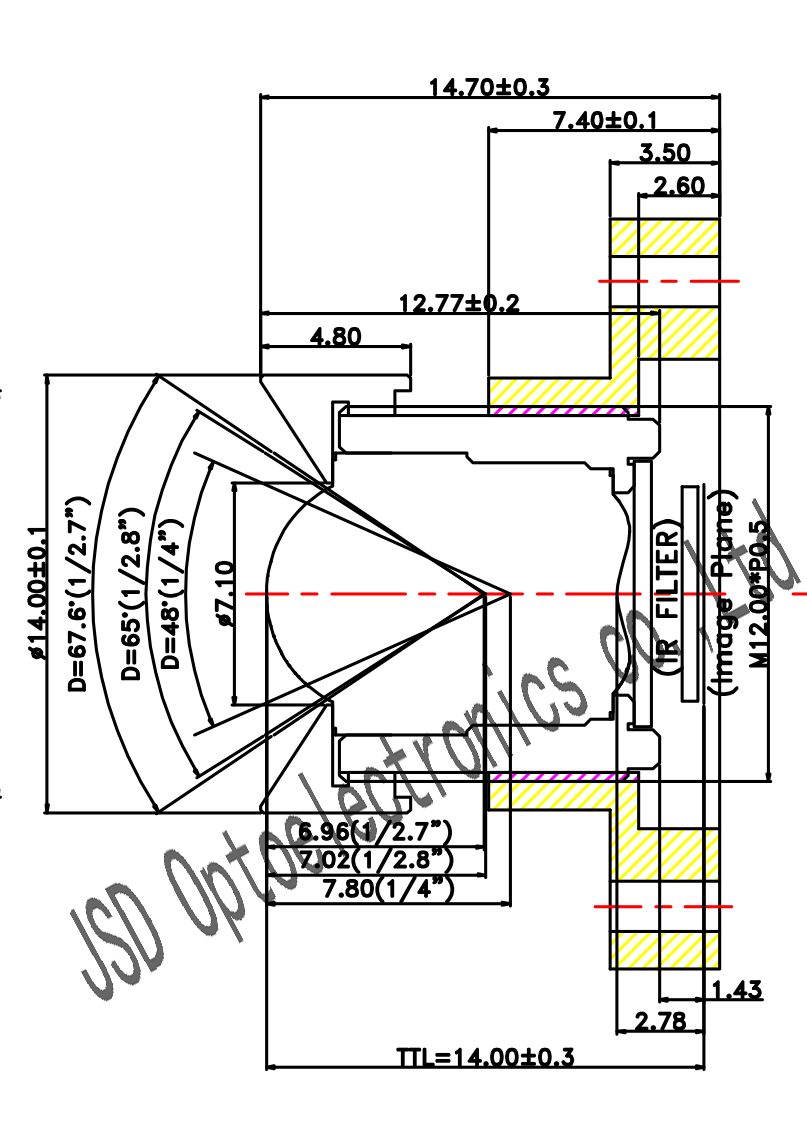

JSD5019
S mount lens wide angle lens large aperture
PN: JSD5019
EFL 5mm
Max image circle 6.6mm
support up to 1/2.8" sensor
- Information
- Related Products
Description
The JSD5019 has focal length 5mm with no distortion, all glass and metal exterior make thermal stable.
Specification
|
| |
Model | JSD5019 | |
Image sensor | 1/2.8” IMX291 | |
Image Circle | 6.6mm | |
Resolution | 3MP | |
Focal Length | 5mm | |
Aperture | F2.4 | |
TTL | 14mm | |
FOV | DFOV 65 HFOV 58° VFOV 34 ° | |
Distortion | -0.1% | |
